Embed Plates

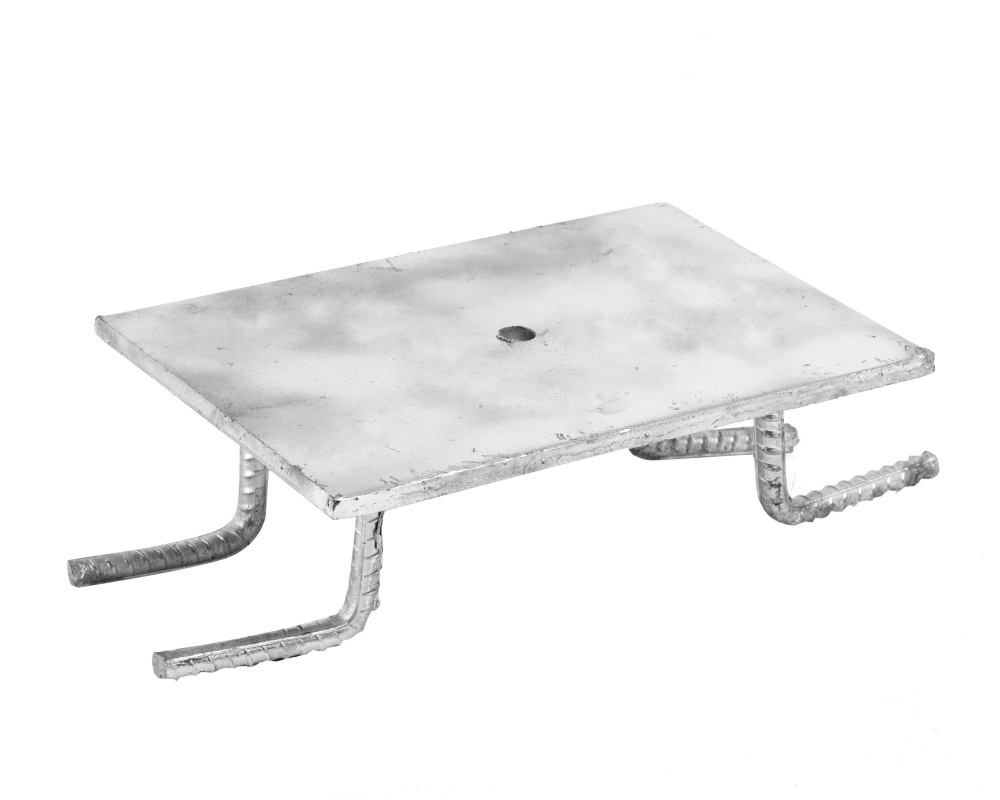

Embed plates are concrete-embedded anchors for curtain wall and steel connections. Their typical form — a flat plate with welded anchor legs — resembles a sturdy steel stool, built to stay firmly secured under load.

At Fabao Machinery, we produce embed plates in carbon steel (Q235B) and stainless steel (304/316), with customizable plate sizes, leg lengths, and configurations. Hot-dip and electro-galvanizing finishes available. Custom orders based on your drawings are welcome.

Get Your Custom Quote

6-Leg Welded Stool Embed Plates for Heavy-Duty Anchoring – Six-Leg Cast-In Anchor Plates →

  • Type: 6-leg welded stool embed plate (six-leg cast-in anchor); also called multi-leg anchor or heavy-duty stool embed
  • Material: Q235B Carbon Steel, Q355B High-Strength Steel, Stainless Steel 316
  • Base Plate Thickness: 12mm – 40mm
  • Anchor Legs: 6 legs; deformed rebar Ø16–Ø32 or round plain bar; leg length 200mm – 800mm
  • Plate Size: 250×250mm up to 800×800mm; fully custom dimensions on request
  • Surface Finish: Hot-dip galvanized (50–85μm), epoxy coat over HDG, bare with anti-rust oil
Learn More

Four-Leg Welded Stool Embed Plates for Heavy-Duty Concrete Anchoring →

  • Type: Four-leg welded anchor plate (welded stool type); 2-leg and 6-leg also available
  • Material: Q235B Carbon Steel (standard), Stainless Steel 316, Q355B high-strength
  • Plate Thickness: 8mm – 30mm; thicker plates on request
  • Leg Type: Deformed rebar or round plain bar, standard leg length 150mm – 600mm
  • Surface Finish: Hot-dip galvanized (50–85μm), electro-galvanized, bare with anti-rust oil
  • Weld Standard: Full-penetration fillet / butt weld, visual + sampling inspection
Learn More
