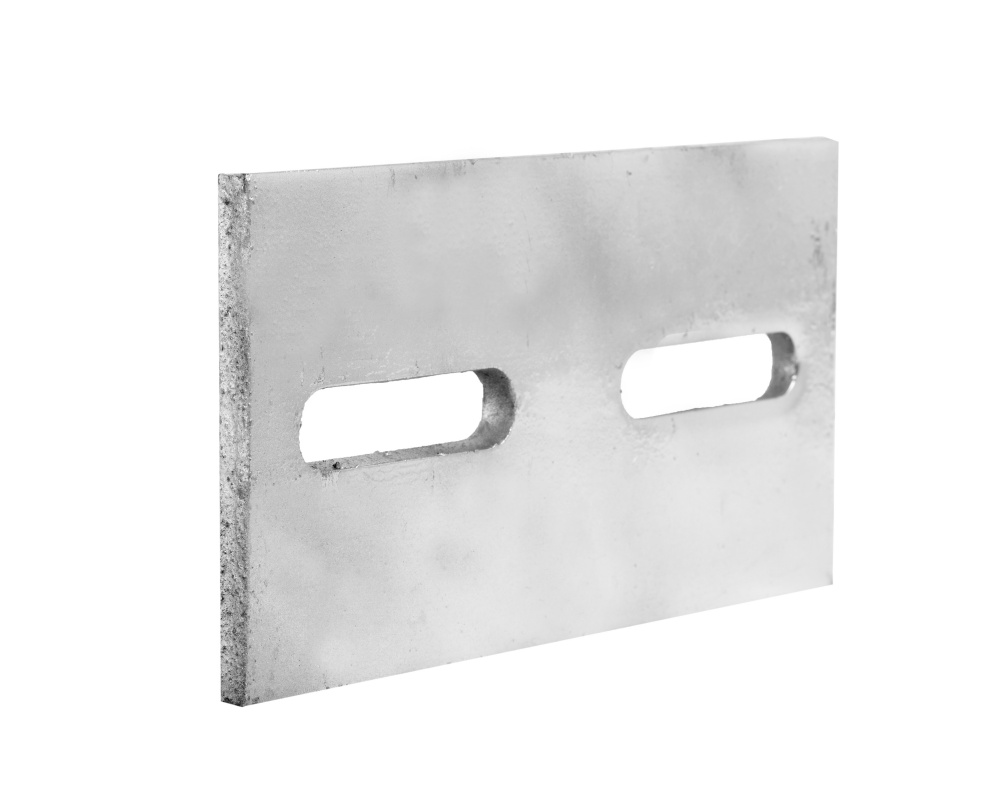

2-Slot Adjustable Connection Plates for Curtain Wall Tolerance Compensation →

Type: Flat plate with two parallel slotted holes; also called slotted splice plate or adjustable connector plate
Material: Q235B Carbon Steel (standard), Stainless Steel 304/316
Thickness: 4mm – 12mm
Slot Dimensions: Slot width Ø11 / Ø14 / Ø18 / Ø22mm; slot length 30mm – 80mm
Surface Finish: Hot-dip galvanized (50μm+), electro-galvanized, pre-galvanized
Standard Plate Size: 150×50mm to 400×120mm; fully custom dimensions and slot configurations

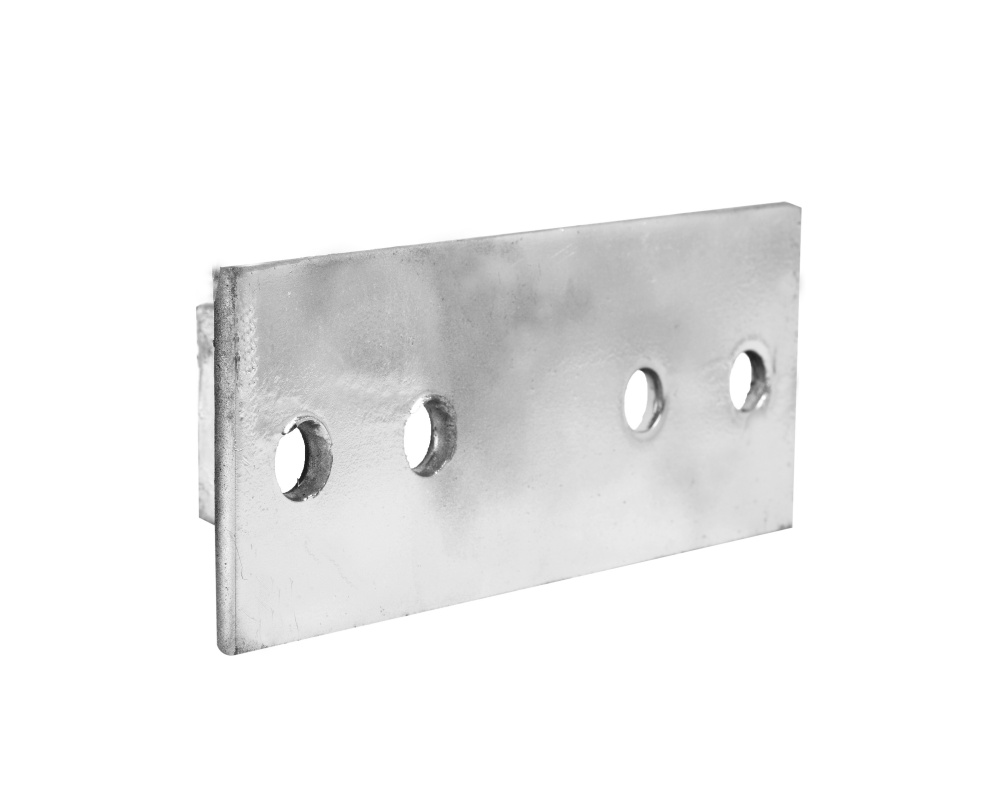

4-Hole Flat Plate Connectors for Steel & Facade Joints – Precision Drilled Splice Plates →

Type: Flat plate connector with 4 pre-drilled holes; square, rectangular, or custom contour
Material: Q235B Carbon Steel, Stainless Steel 304/316, Q355B High-Strength
Thickness: 3mm – 20mm (material and load dependent)
Hole Configuration: Round, slotted, countersunk, tapped, or mixed
Surface Finish: Hot-dip galvanized (50μm+), electro-galvanized, bare with anti-rust oil
Standard Dimensions: 100×50mm to 400×200mm; fully custom sizes accepted per drawing

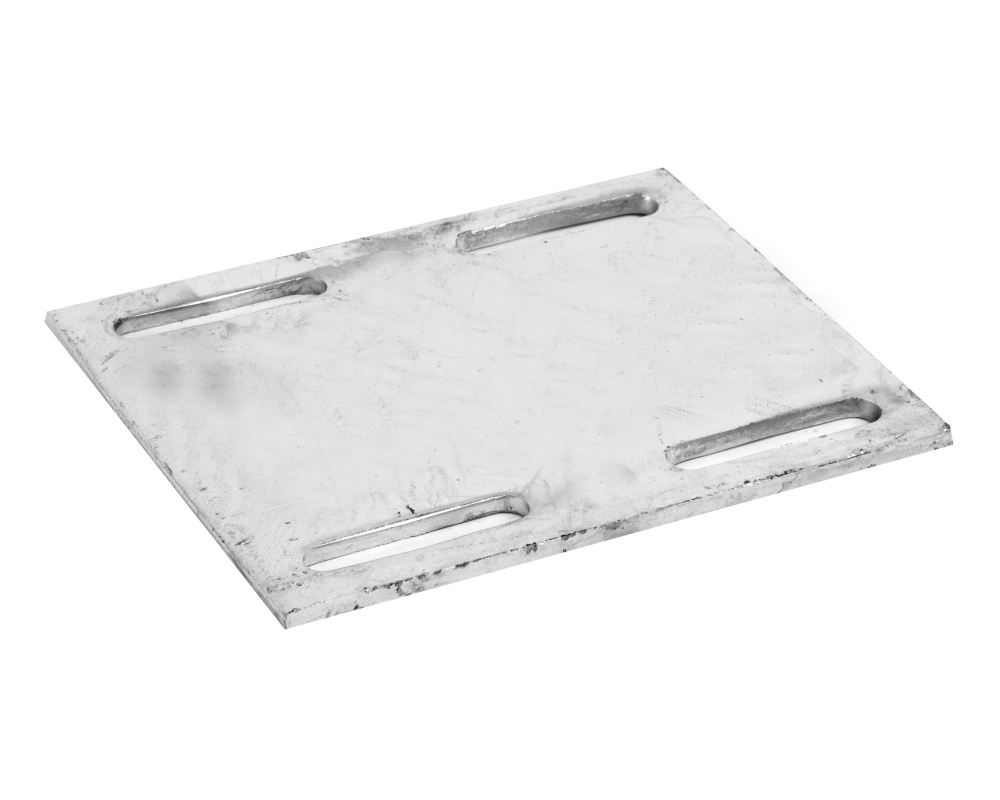

4-Slot Adjustable Connection Plates for Multi-Directional Tolerance Adjustment →

Type: Flat plate with four slotted holes for multi-directional adjustment; also called 4-slot adjustable splice plate or multi-axis connector plate
Material: Q235B Carbon Steel (standard), Stainless Steel 304/316
Thickness: 4mm – 12mm
Slot Configuration: Four parallel slots; two vertical + two horizontal slots; or custom mixed orientation
Slot Dimensions: Slot width Ø11 / Ø14 / Ø18mm; slot length 30mm – 80mm
Surface Finish: Hot-dip galvanized (50μm+), electro-galvanized, pre-galvanized

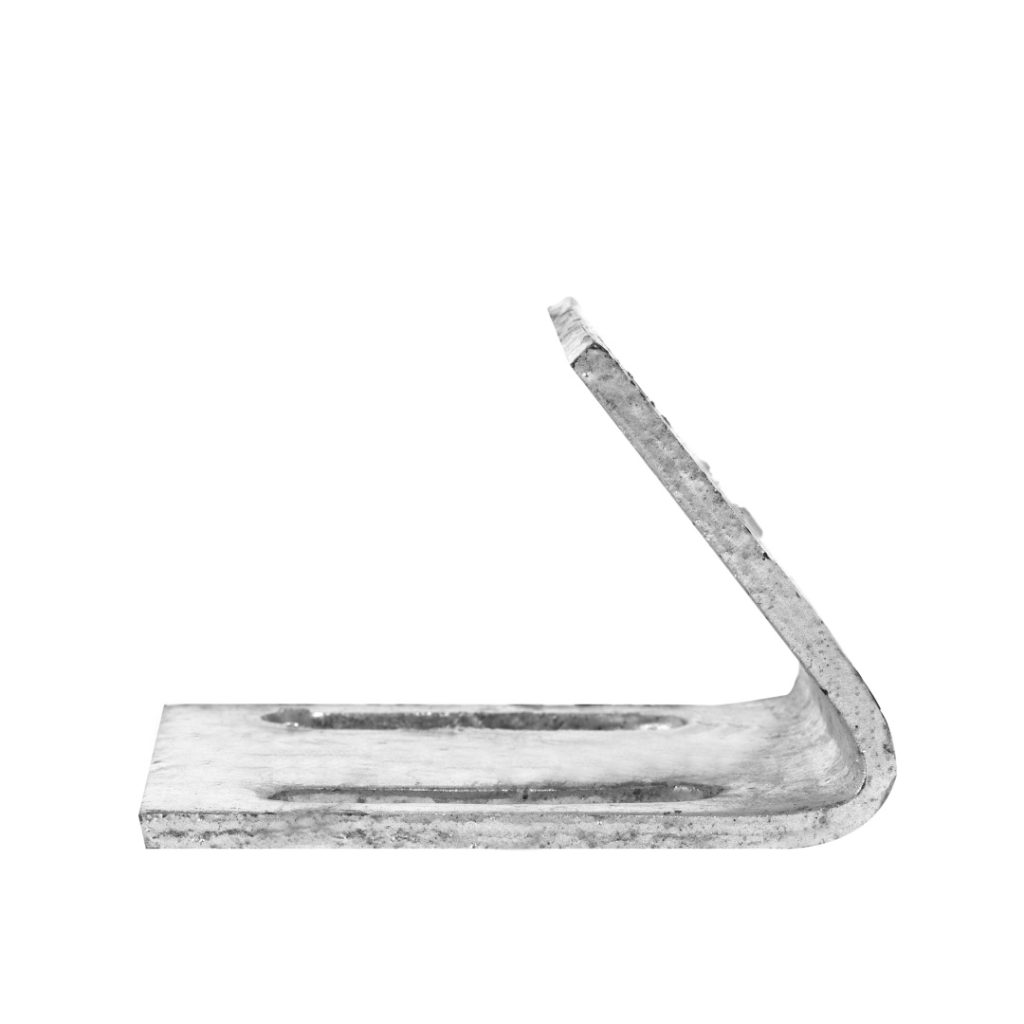

45° Angle Brackets for Curtain Wall & Steel Connections →

Angle: 45° (custom 15°, 30°, 60°, 75°, 120° available)
Material: Q235B Carbon Steel, Stainless Steel 304/316, Aluminum Alloy 6063-T5
Thickness: 2mm – 10mm (varies by material)
Leg Length: 40×40 mm up to 200×200 mm (custom sizes available)
Surface Finish: Hot-dip galvanized, electro-galvanized, powder coated, anodized (silver/black/bronze)
Hole Type: Round, slotted, countersunk, multi-hole patterns

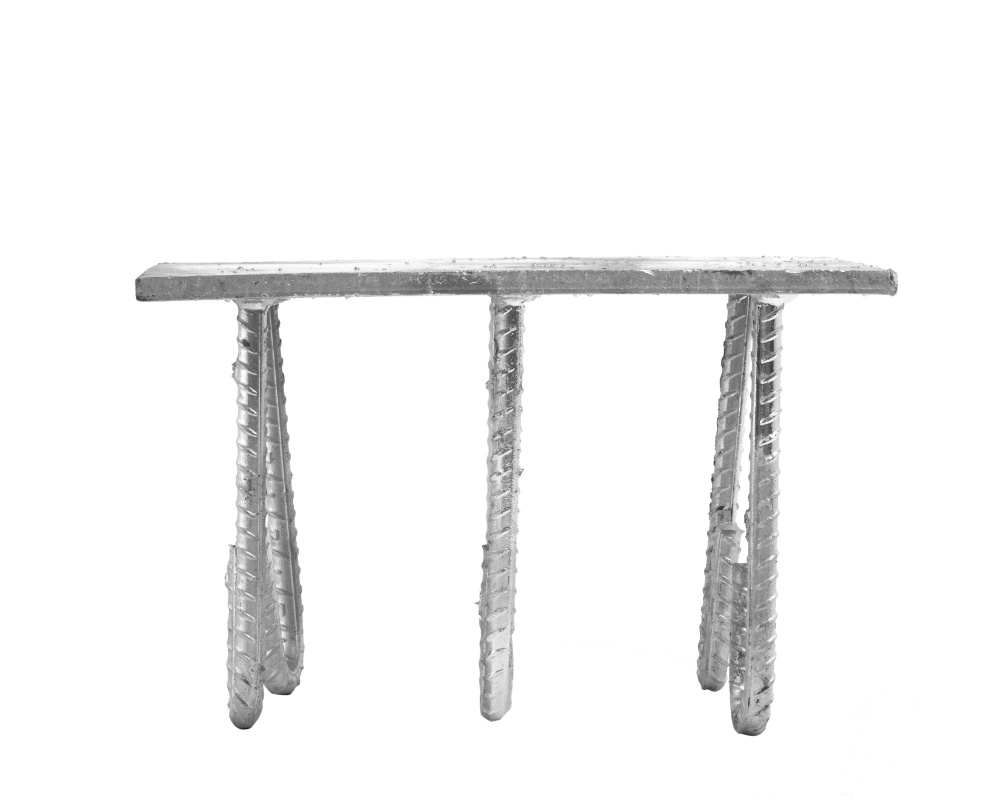

6-Leg Welded Stool Embed Plates for Heavy-Duty Anchoring – Six-Leg Cast-In Anchor Plates →

Type: 6-leg welded stool embed plate (six-leg cast-in anchor); also called multi-leg anchor or heavy-duty stool embed
Material: Q235B Carbon Steel, Q355B High-Strength Steel, Stainless Steel 316
Base Plate Thickness: 12mm – 40mm
Anchor Legs: 6 legs; deformed rebar Ø16–Ø32 or round plain bar; leg length 200mm – 800mm
Plate Size: 250×250mm up to 800×800mm; fully custom dimensions on request
Surface Finish: Hot-dip galvanized (50–85μm), epoxy coat over HDG, bare with anti-rust oil

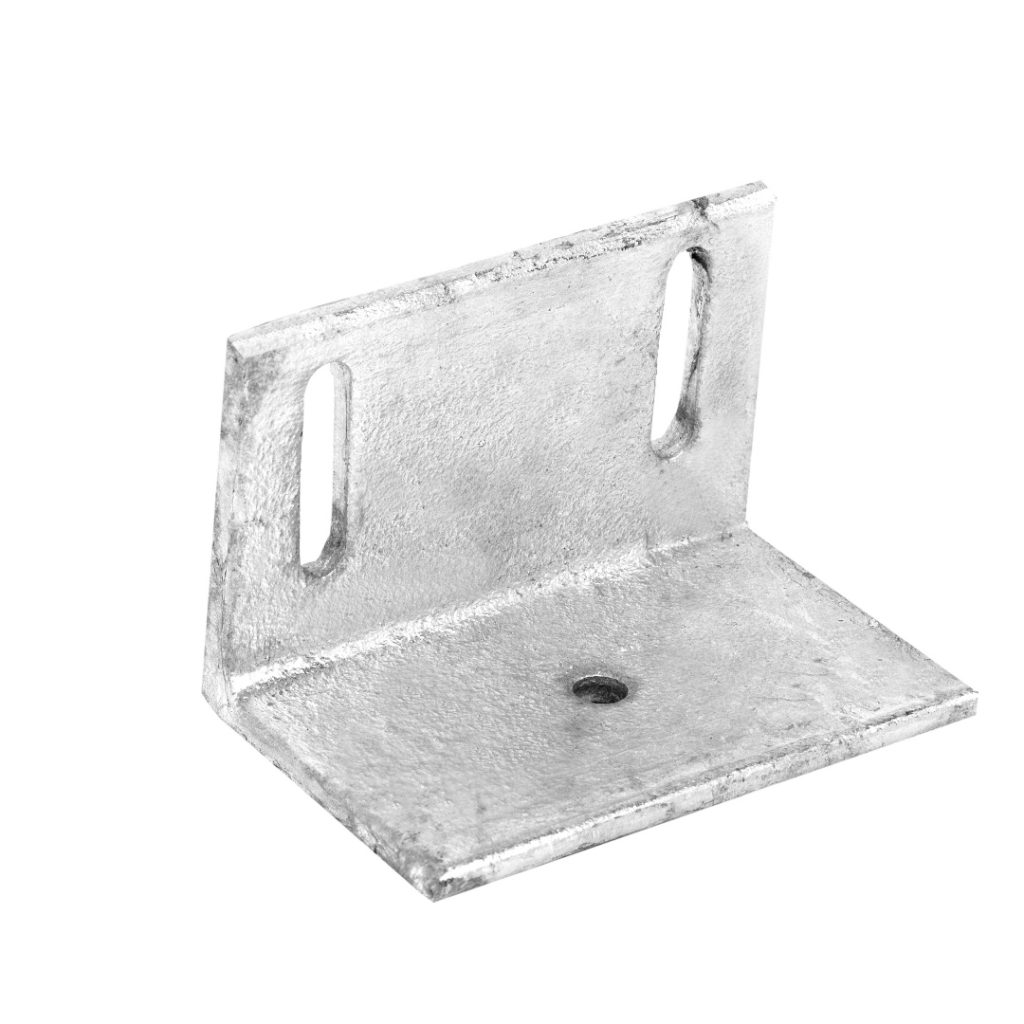

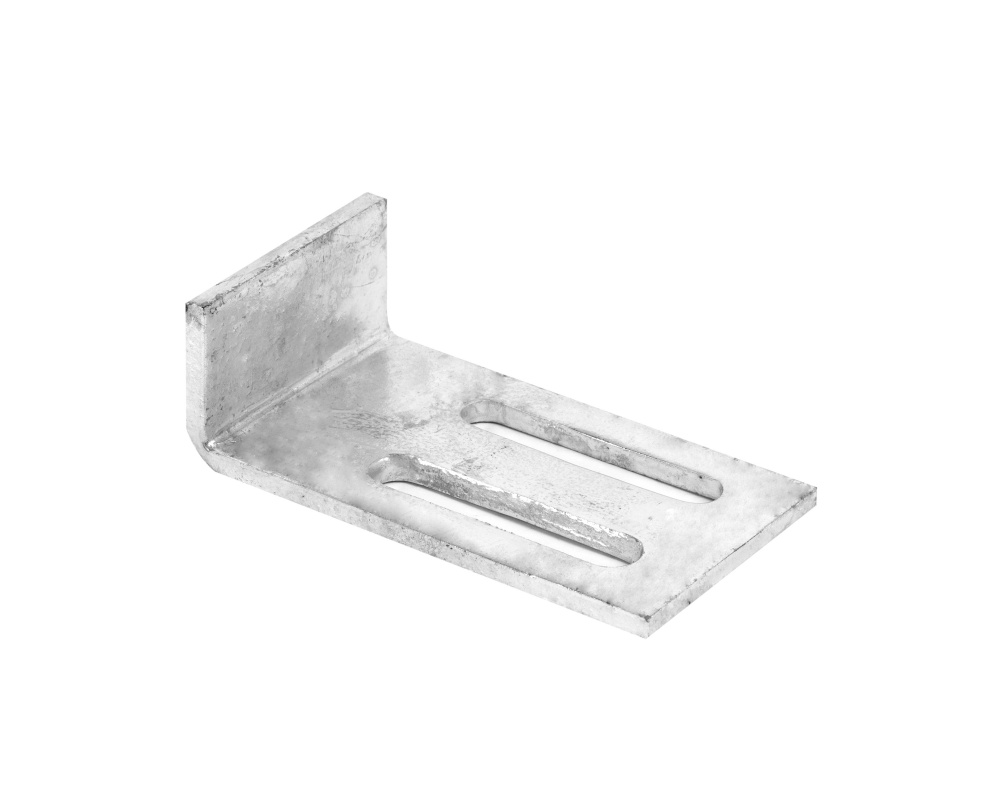

90° Angle Brackets in Bulk – High-Precision L-Brackets with Fast Lead Times →

Angle: 90° (standard); custom angles for special joints available
Material: Q235B Carbon Steel, Stainless Steel 304/316, Aluminum Alloy 6063-T5
Thickness: 2mm – 12mm (varies by material and load)
Leg Length: 30×30 mm up to 300×300 mm (custom sizes on request)
Surface Finish: Hot-dip galvanized, electro-galvanized, powder coated, anodized
Hole Type: Plain round, slotted for adjustment, multi-hole patterns per drawing

90° Corner Braces for Facade & Steel Frame Assembly →

Angle: 90° standard; equal-leg and unequal-leg options available
Material: Q235B Carbon Steel, Stainless Steel 304/316, Aluminum 6063-T5
Thickness: 2mm – 12mm
Leg Length: 25×25 mm up to 300×300 mm; unequal legs on request
Surface Finish: Hot-dip galvanized, electro-galvanized, powder coated, anodized
Hole Configuration: Pre-drilled round holes, slotted holes for on-site adjustment

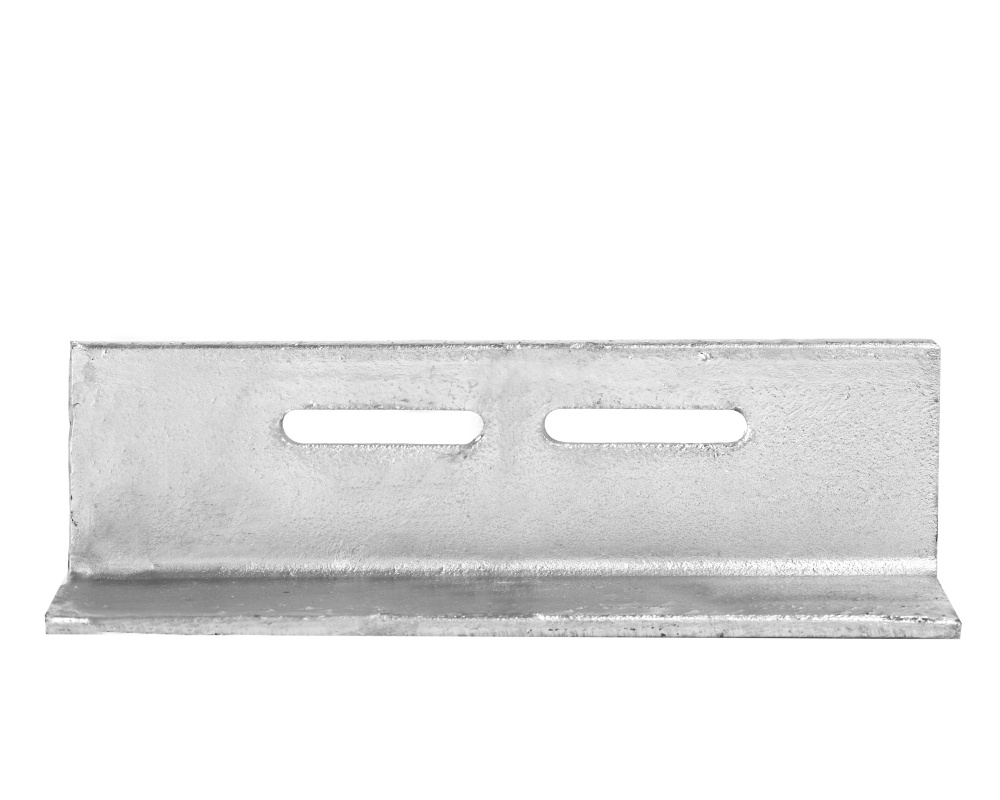

Aluminum 90° Corner Braces for Curtain Wall & Light Framing →

Angle: 90° equal-leg; unequal-leg and reinforced rib designs on request
Material: Aluminum Alloy 6063-T5 (standard), 6061-T6 (higher strength)
Thickness: 2mm – 6mm (extruded profile)
Leg Length: Customization
Surface Finish: Anodized (clear/silver), black anodized, bronze anodized, powder coated RAL colors
Hole Type: Pre-drilled round holes; slotted for alignment; can be supplied blank for site drilling

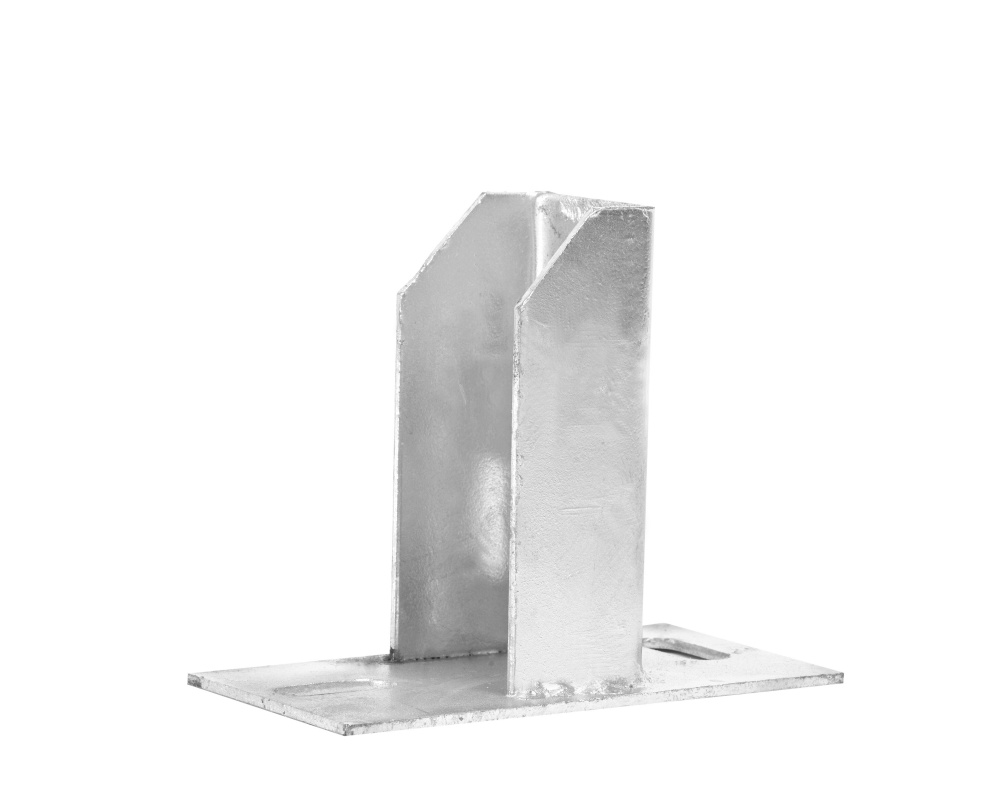

Column Base Plate Connectors for Curtain Wall & Steel Posts →

Type: Column base plate / post anchor / foot bracket; flat base with welded tube adapter, including levelling nuts
Material: Q235B / Q355B Carbon Steel, Stainless Steel 304/316
Base Plate Thickness: 10mm – 30mm (load-dependent)
Adaptable Tube Size: 40×40mm up to 300×300mm square; rectangular and round tube bases available
Anchor Bolt Configuration: 2, 4, or 6 holes; M12–M30; slotted or round
Surface Finish: Hot-dip galvanized (50–85μm), zinc-rich primer, passivated (stainless)

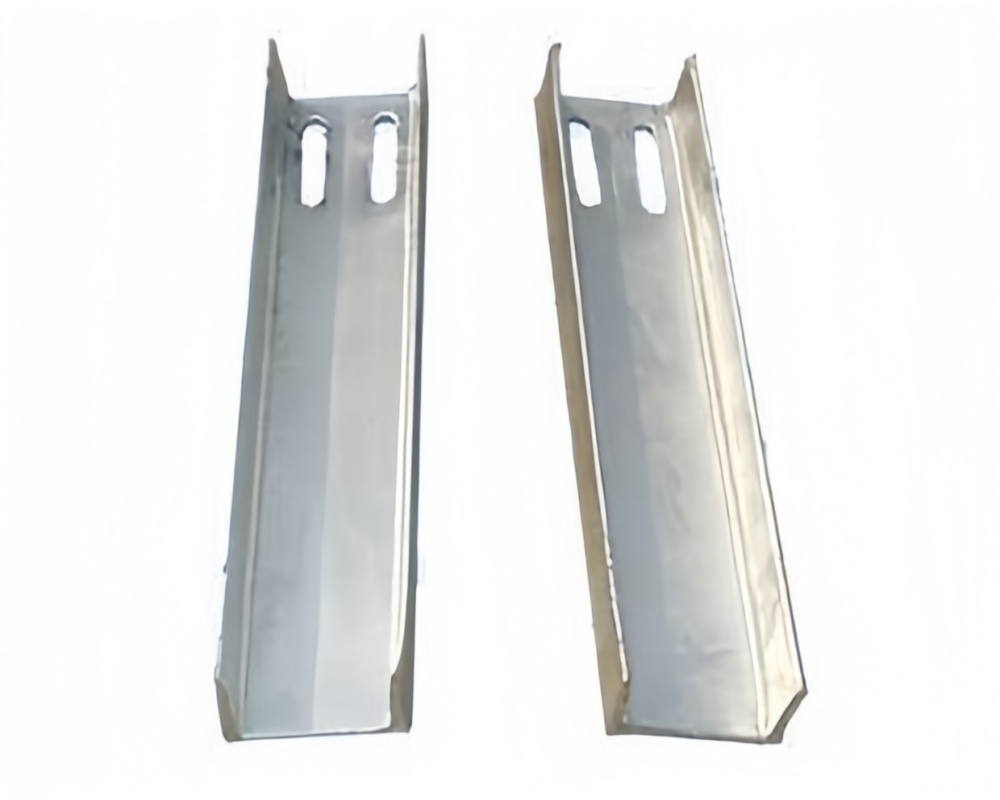

Custom Steel Beams for Curtain Wall & Structural Frameworks – H-Beams, Box Beams & Tees →

Profile: H-beam, I-beam, box beam (square/RHS), channel beam (C/U), T-beam, and built-up welded sections
Material: Q235B / Q355B Carbon Steel, Stainless Steel 304/316, Weathering Steel
Web Depth: 100mm – 1500mm (standard); deeper custom sections available
Length: Up to 12 meters single piece; longer by welded splice
Surface Finish: Hot-dip galvanized, zinc-rich primer + epoxy topcoat, bare steel
Fabrication: Cutting, beveling, stiffener welding, drilling, and coating — all in-house

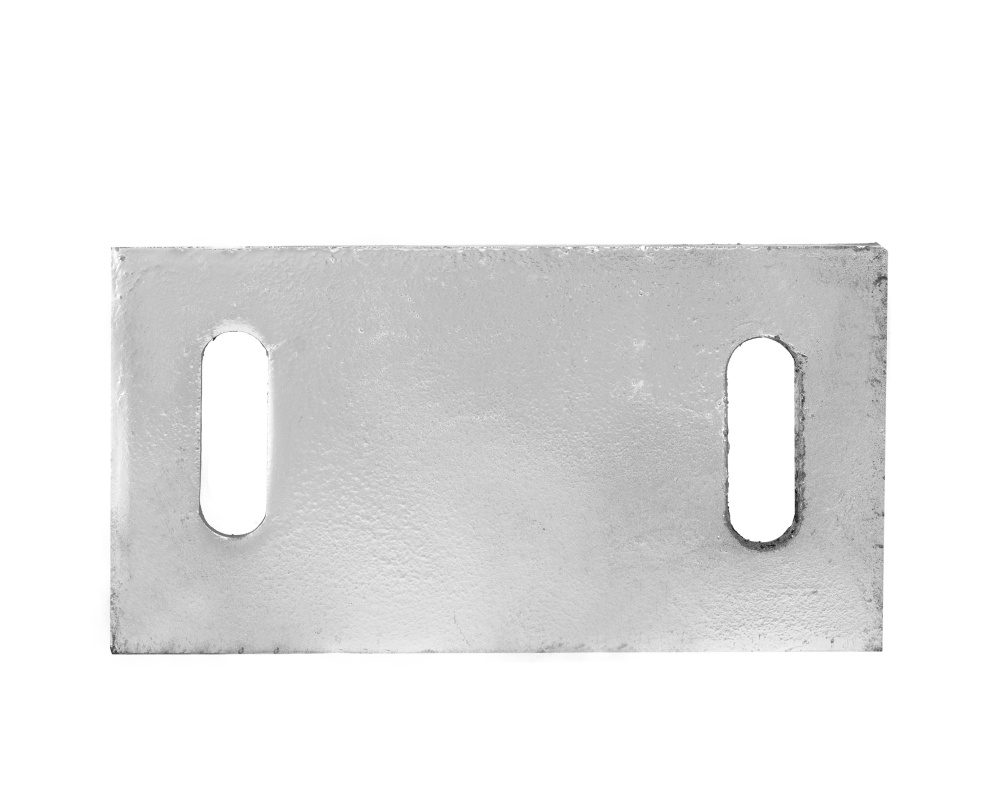

Custom Steel Connection Parts for Curtain Wall & Steelwork – L, U, Z, Flat Plate Fabrication →

Part Types: L-angle, U-channel, Z-bracket, flat plate, gusset, cleat, and welded assemblies
Material: Q235B Carbon Steel, Stainless Steel 304/316, Q355B high-strength
Thickness: 2mm – 20mm (material dependent)
Hole Configuration: Round, slotted, countersunk, tapped, or combined
Surface Finish: Hot-dip galvanized, electro-galvanized, powder coated, bare with anti-rust
Production Basis: Fully custom to client drawings; no standard shape constraints

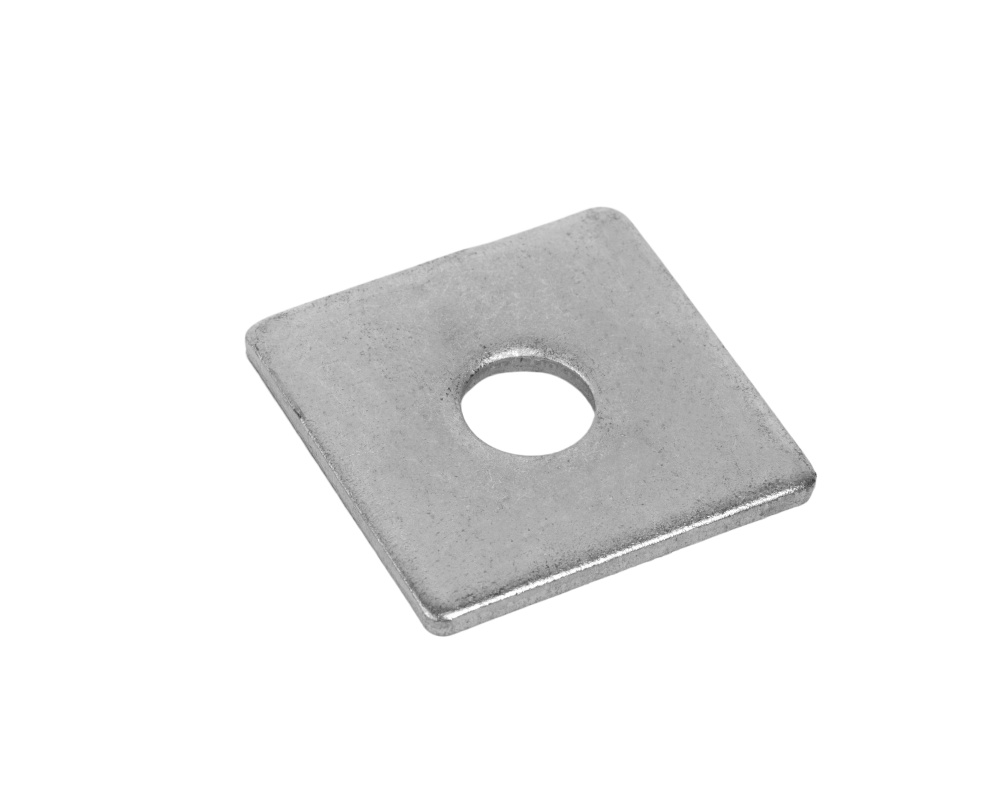

Custom Steel Shims & Spacers for Curtain Wall Alignment – Precision Filler Plates | Fabao →

Type: Flat shim, horseshoe shim, slotted shim, wedge shim, full-pack shim sets
Material: Q235B Carbon Steel, Stainless Steel 304/316, Galvanized Steel, Aluminum
Thickness: 0.5mm single leaf up to 20mm solid plate; multi-leaf peelable packs available
Typical Dimensions: 50×50mm to 300×300mm; custom contours and slot widths per drawing
Surface Finish: Hot-dip galvanized, electro-galvanized, pre-galvanized, bare with anti-rust oil
Special Feature: Peelable laminated shims for rapid on-site thickness adjustment without measuring tools

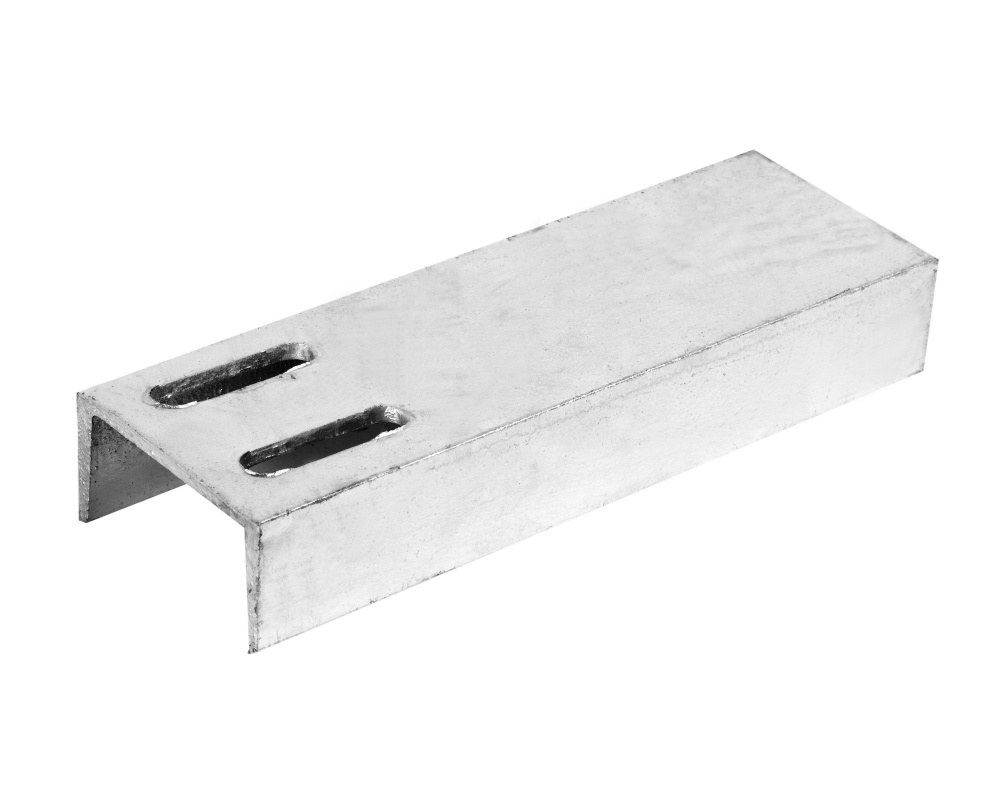

Extended U-Brackets for Curtain Wall Continuous Support – Long U-Channel Connector →

Type: Extended-length U-bracket / continuous U-channel connector; also called through-length channel bracket
Material: Q235B Carbon Steel (standard), Stainless Steel 304/216
Thickness: 4mm – 10mm
Length: 300mm – 3000mm (standard); longer lengths on request
Internal Width: 50mm – 300mm
Leg Height: 40mm – 150mm

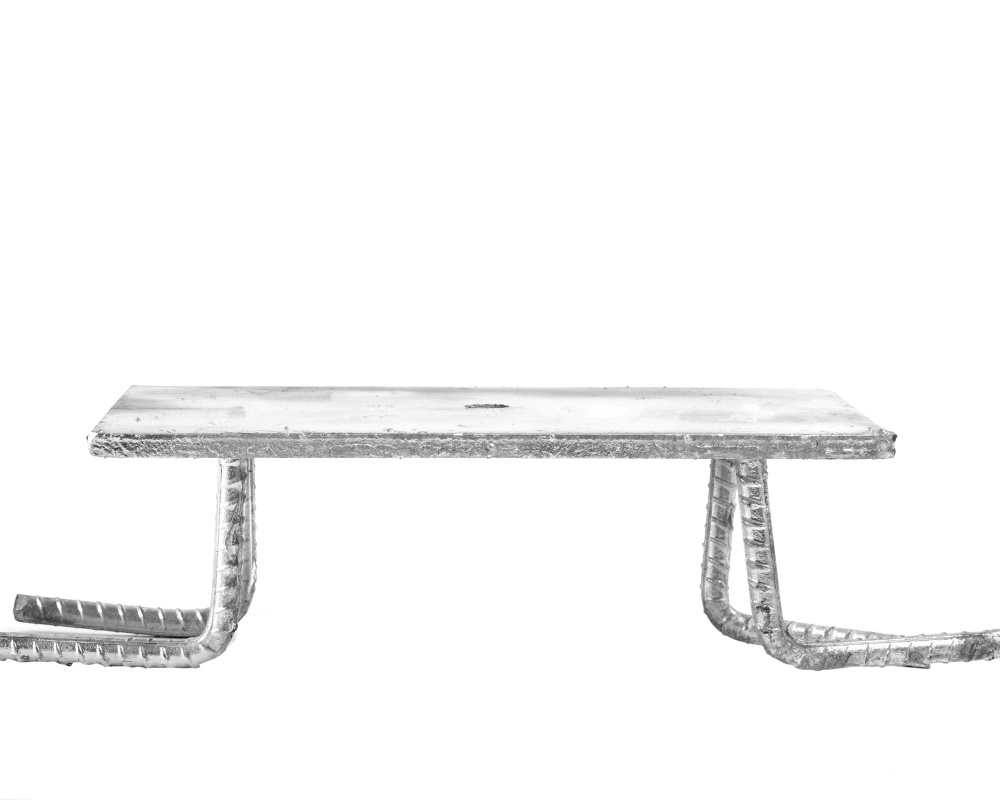

Four-Leg Welded Stool Embed Plates for Heavy-Duty Concrete Anchoring →

Type: Four-leg welded anchor plate (welded stool type); 2-leg and 6-leg also available
Material: Q235B Carbon Steel (standard), Stainless Steel 316, Q355B high-strength
Plate Thickness: 8mm – 30mm; thicker plates on request
Leg Type: Deformed rebar or round plain bar, standard leg length 150mm – 600mm
Surface Finish: Hot-dip galvanized (50–85μm), electro-galvanized, bare with anti-rust oil
Weld Standard: Full-penetration fillet / butt weld, visual + sampling inspection

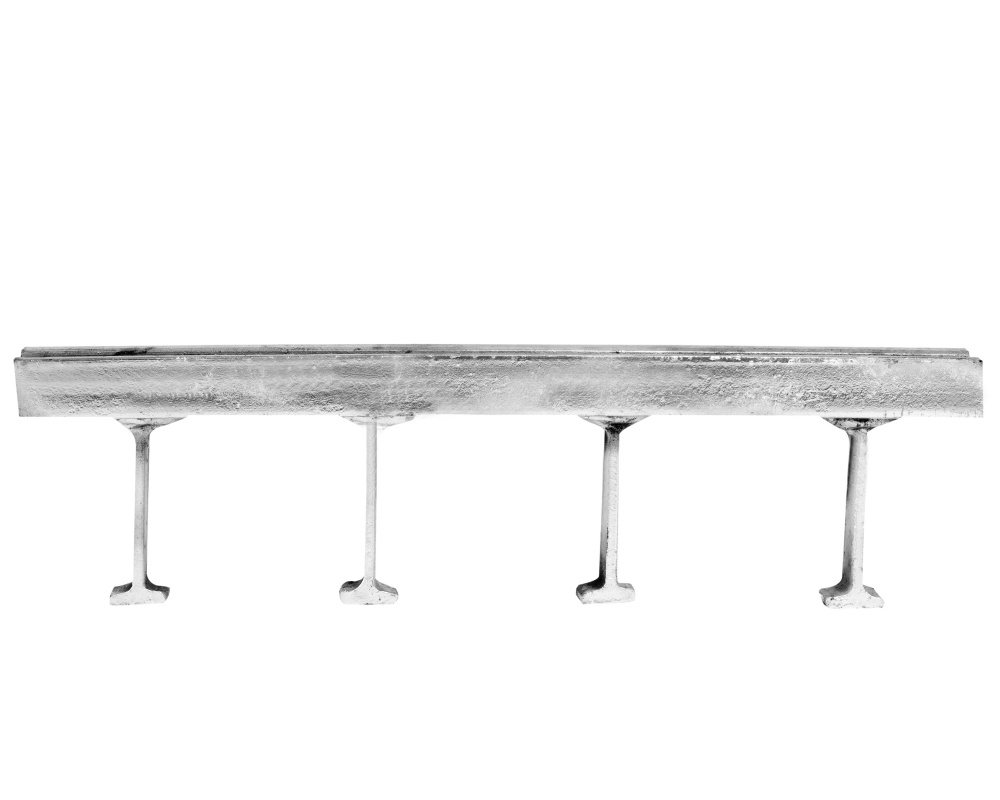

Halfen Channels for Curtain Wall Concrete Anchoring – Hot-Rolled Anchor Channels & T-Bolts →

Profile: Hot-rolled or cold-formed C-channel with serrated or plain inner surface
Material: Q235B Carbon Steel (standard), Stainless Steel 304/316, Q355B high-strength
Channel Depth: 20mm – 55mm; custom depths on request
Length: 150mm – 6000mm; longer lengths by welded splice
Slot Width: 14mm / 18mm / 22mm / 28mm for T-bolt insertion and adjustment
Surface Finish: Hot-dip galvanized (50–85μm), electro-galvanized, passivated (stainless)

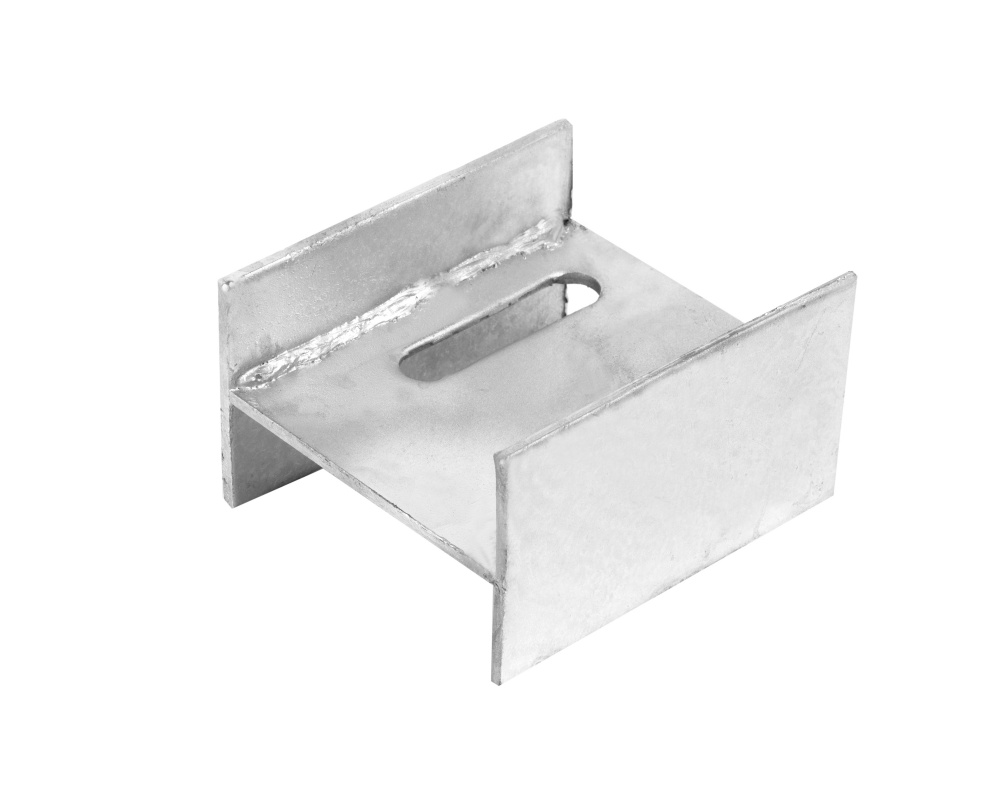

I-Beam Connectors for Curtain Wall & Structural Steel →

Type: I-shaped connector / I-beam connection bracket; split-type and welded-type
Material: Q235B Carbon Steel, Q355B High-Strength Steel, Stainless Steel 304/316
Thickness: 6mm – 16mm
Suitable Beam Flange Width: 80mm – 400mm
Bolt Configuration: M12 / M16 / M20 / M24; through-bolt clamping or tapped holes
Surface Finish: Hot-dip galvanized (50–85μm), electro-galvanized, passivated
