Connection Parts

Connection parts(Connectors) link different structural components in curtain wall and steel frameworks — from U-shaped connectors and angle splices to custom welded brackets. Each piece acts as a critical joint that transfers loads securely between members.

At Fabao Machinery, we supply connection parts in carbon steel (Q235B) and stainless steel (304/316), with hot-dip or electro-galvanizing finishes. Custom configurations based on your drawings are always welcome.

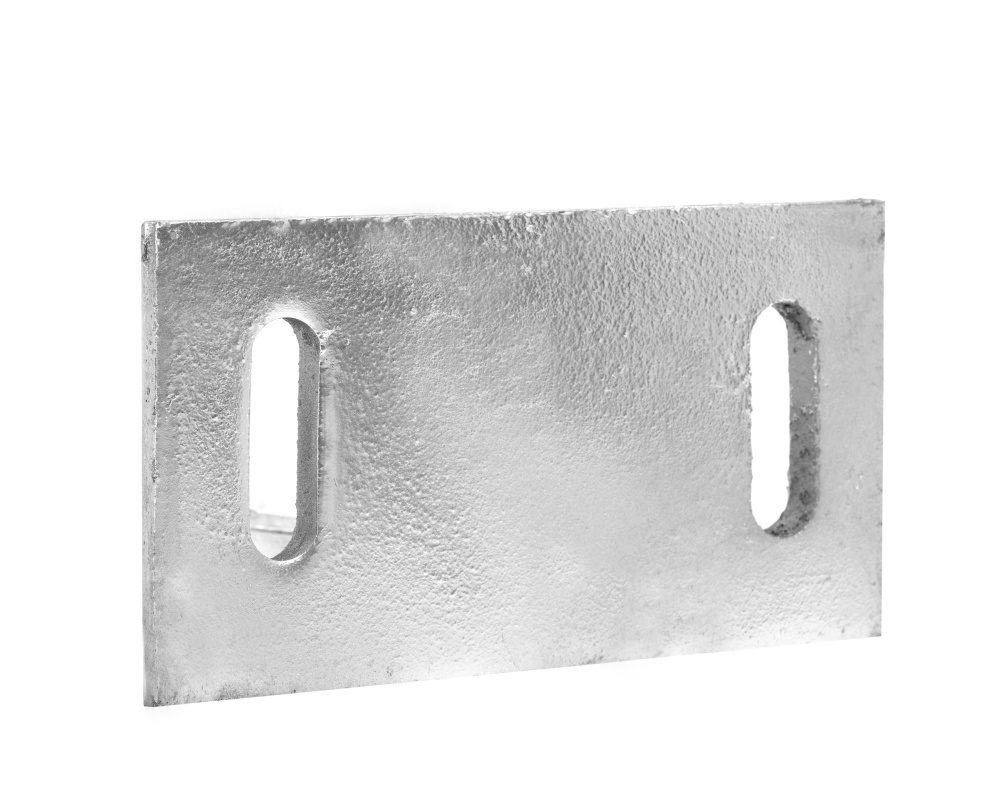

2-Slot Adjustable Connection Plates for Curtain Wall Tolerance Compensation →

Type: Flat plate with two parallel slotted holes; also called slotted splice plate or adjustable connector plate
Material: Q235B Carbon Steel (standard), Stainless Steel 304/316
Thickness: 4mm – 12mm
Slot Dimensions: Slot width Ø11 / Ø14 / Ø18 / Ø22mm; slot length 30mm – 80mm
Surface Finish: Hot-dip galvanized (50μm+), electro-galvanized, pre-galvanized
Standard Plate Size: 150×50mm to 400×120mm; fully custom dimensions and slot configurations

4-Hole Flat Plate Connectors for Steel & Facade Joints – Precision Drilled Splice Plates →

Type: Flat plate connector with 4 pre-drilled holes; square, rectangular, or custom contour
Material: Q235B Carbon Steel, Stainless Steel 304/316, Q355B High-Strength
Thickness: 3mm – 20mm (material and load dependent)
Hole Configuration: Round, slotted, countersunk, tapped, or mixed
Surface Finish: Hot-dip galvanized (50μm+), electro-galvanized, bare with anti-rust oil
Standard Dimensions: 100×50mm to 400×200mm; fully custom sizes accepted per drawing

4-Slot Adjustable Connection Plates for Multi-Directional Tolerance Adjustment →

Type: Flat plate with four slotted holes for multi-directional adjustment; also called 4-slot adjustable splice plate or multi-axis connector plate
Material: Q235B Carbon Steel (standard), Stainless Steel 304/316
Thickness: 4mm – 12mm
Slot Configuration: Four parallel slots; two vertical + two horizontal slots; or custom mixed orientation
Slot Dimensions: Slot width Ø11 / Ø14 / Ø18mm; slot length 30mm – 80mm
Surface Finish: Hot-dip galvanized (50μm+), electro-galvanized, pre-galvanized

Column Base Plate Connectors for Curtain Wall & Steel Posts →

Type: Column base plate / post anchor / foot bracket; flat base with welded tube adapter, including levelling nuts
Material: Q235B / Q355B Carbon Steel, Stainless Steel 304/316
Base Plate Thickness: 10mm – 30mm (load-dependent)
Adaptable Tube Size: 40×40mm up to 300×300mm square; rectangular and round tube bases available
Anchor Bolt Configuration: 2, 4, or 6 holes; M12–M30; slotted or round
Surface Finish: Hot-dip galvanized (50–85μm), zinc-rich primer, passivated (stainless)

Custom Steel Connection Parts for Curtain Wall & Steelwork – L, U, Z, Flat Plate Fabrication →

Part Types: L-angle, U-channel, Z-bracket, flat plate, gusset, cleat, and welded assemblies
Material: Q235B Carbon Steel, Stainless Steel 304/316, Q355B high-strength
Thickness: 2mm – 20mm (material dependent)
Hole Configuration: Round, slotted, countersunk, tapped, or combined
Surface Finish: Hot-dip galvanized, electro-galvanized, powder coated, bare with anti-rust
Production Basis: Fully custom to client drawings; no standard shape constraints

Extended U-Brackets for Curtain Wall Continuous Support – Long U-Channel Connector →

Type: Extended-length U-bracket / continuous U-channel connector; also called through-length channel bracket
Material: Q235B Carbon Steel (standard), Stainless Steel 304/216
Thickness: 4mm – 10mm
Length: 300mm – 3000mm (standard); longer lengths on request
Internal Width: 50mm – 300mm
Leg Height: 40mm – 150mm

I-Beam Connectors for Curtain Wall & Structural Steel →

Type: I-shaped connector / I-beam connection bracket; split-type and welded-type
Material: Q235B Carbon Steel, Q355B High-Strength Steel, Stainless Steel 304/316
Thickness: 6mm – 16mm
Suitable Beam Flange Width: 80mm – 400mm
Bolt Configuration: M12 / M16 / M20 / M24; through-bolt clamping or tapped holes
Surface Finish: Hot-dip galvanized (50–85μm), electro-galvanized, passivated

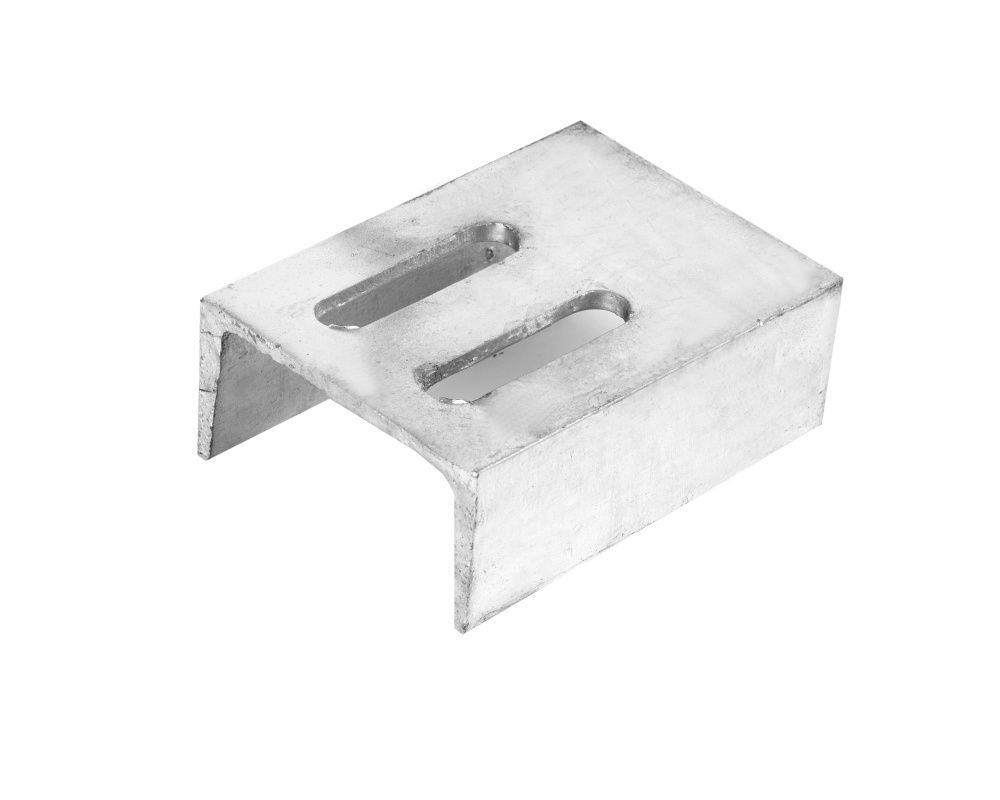

U-Bracket Connectors for Curtain Wall & Steel Pipe Fixing – U-Clevis & U-Strap Clamps | Fabao →

Type: U-shaped bracket / U-clevis / saddle clamp; open-back or closed-back
Material: Q235B Carbon Steel (standard), Stainless Steel 304/316
Thickness: 3mm – 12mm (plate); 2.5mm – 6mm (pressed steel)
Internal Width: 50mm – 400mm (to suit beam flange or tube diameter)
Leg Height: 40mm – 200mm
Surface Finish: Hot-dip galvanized (50μm+), electro-galvanized, powder coated

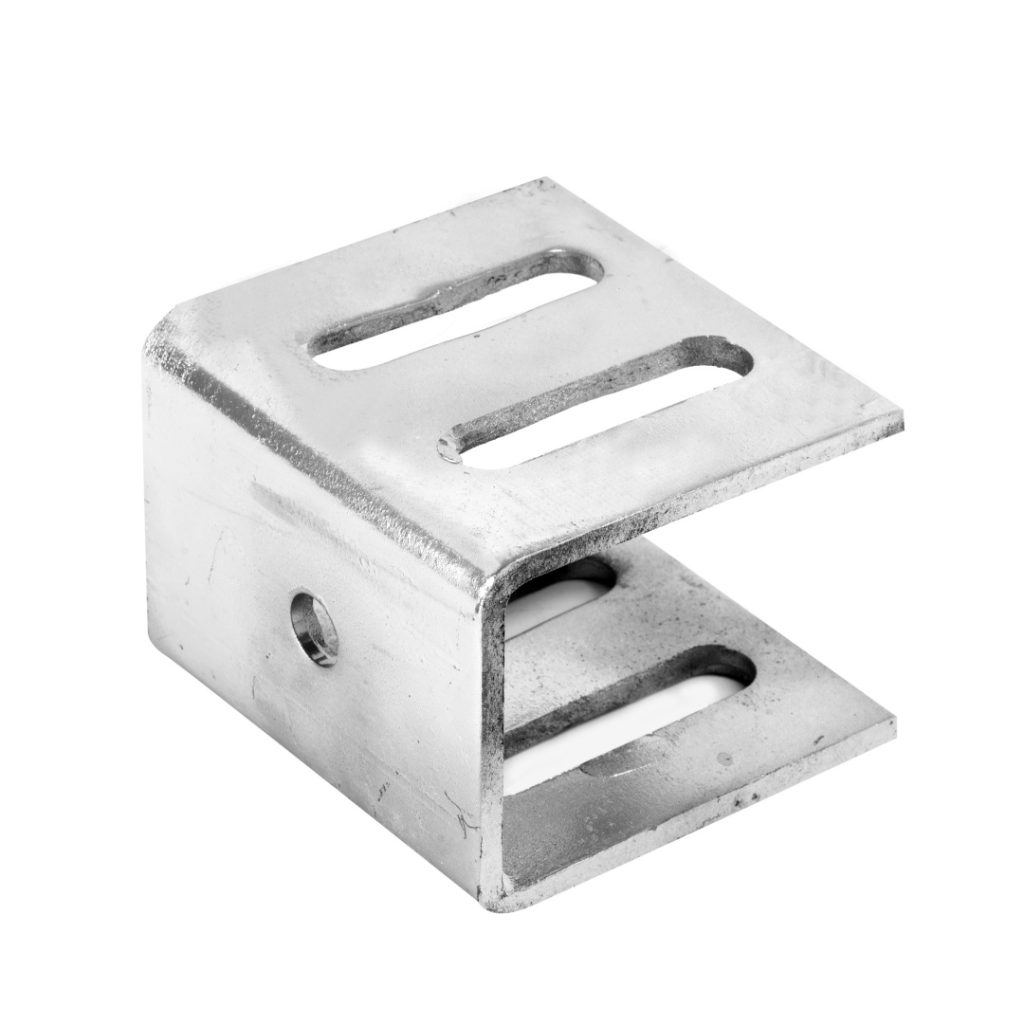

U-Channel Connectors for Curtain Wall Adjustable Fixing →

Profile: U-shaped channel (C-channel), slotted legs, open back or closed back
Material: Q235B Carbon Steel, Stainless Steel 304/316
Thickness: 2.5mm – 8mm (web and legs)
Length: 50mm – 600mm (standard); custom lengths on request
Surface Finish: Hot-dip galvanized, pre-galvanized, electro-galvanized
Slot Type: Continuous slotted, multi-hole slotted, or combination round + slot
