Product Description
What Is a 45° Angle Bracket?

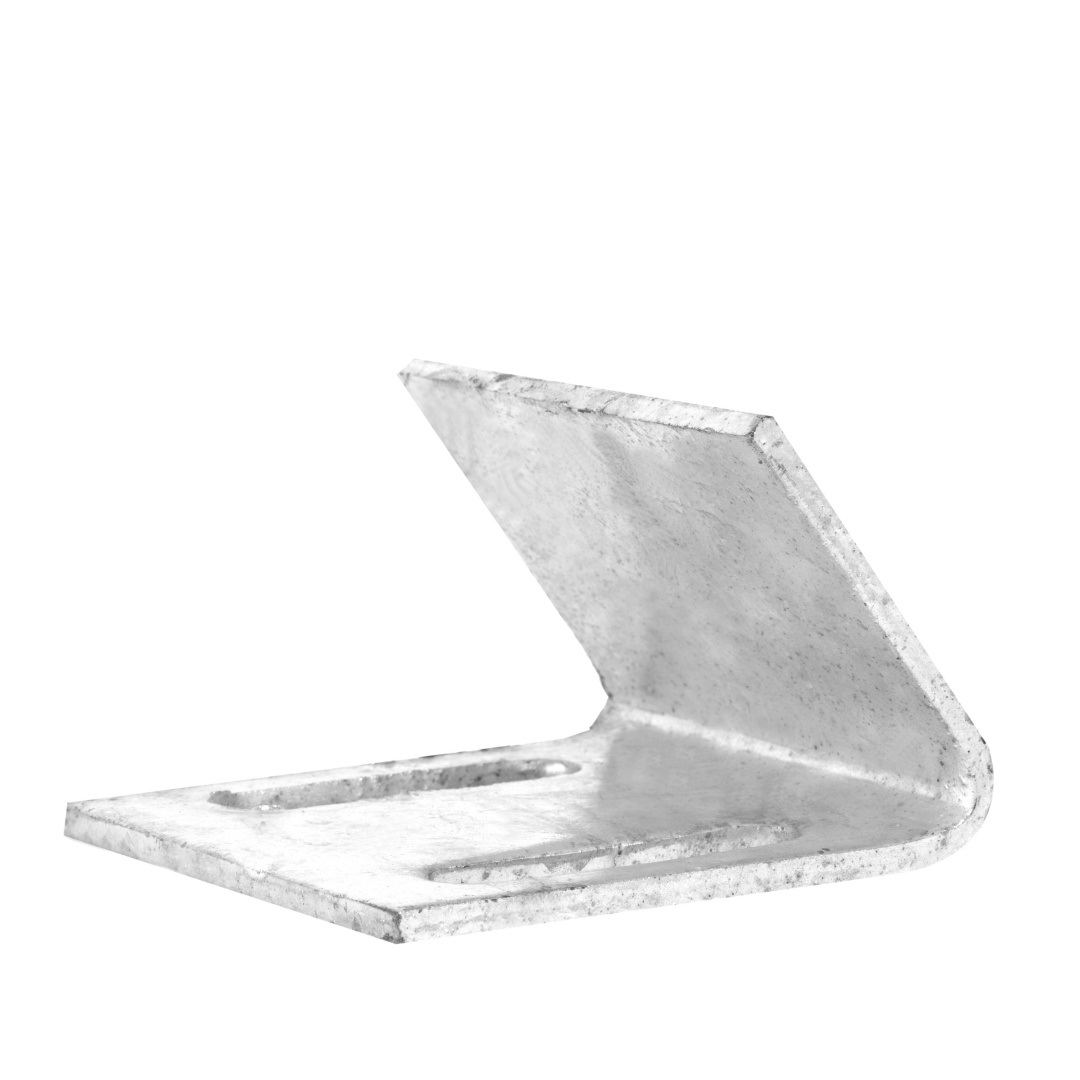

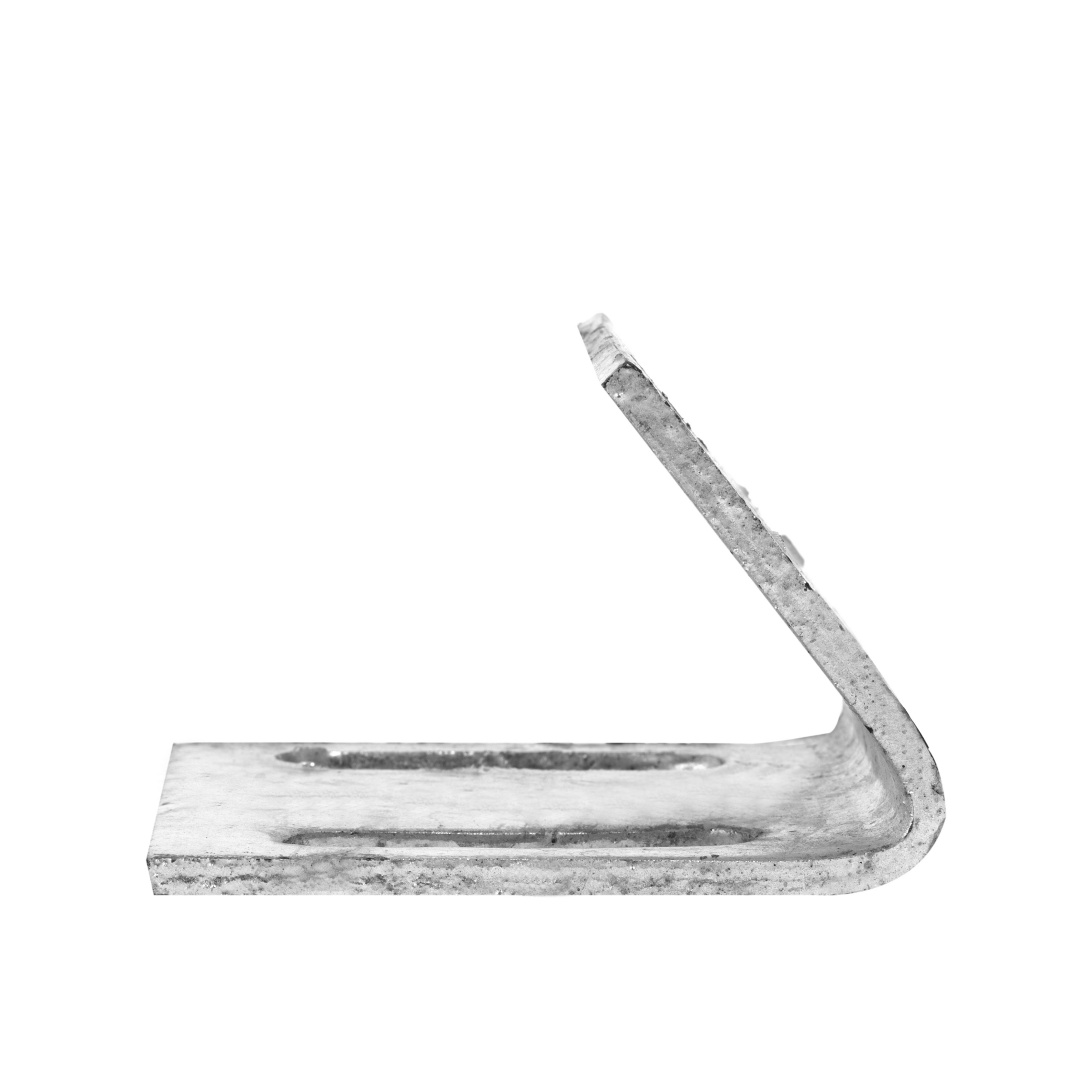

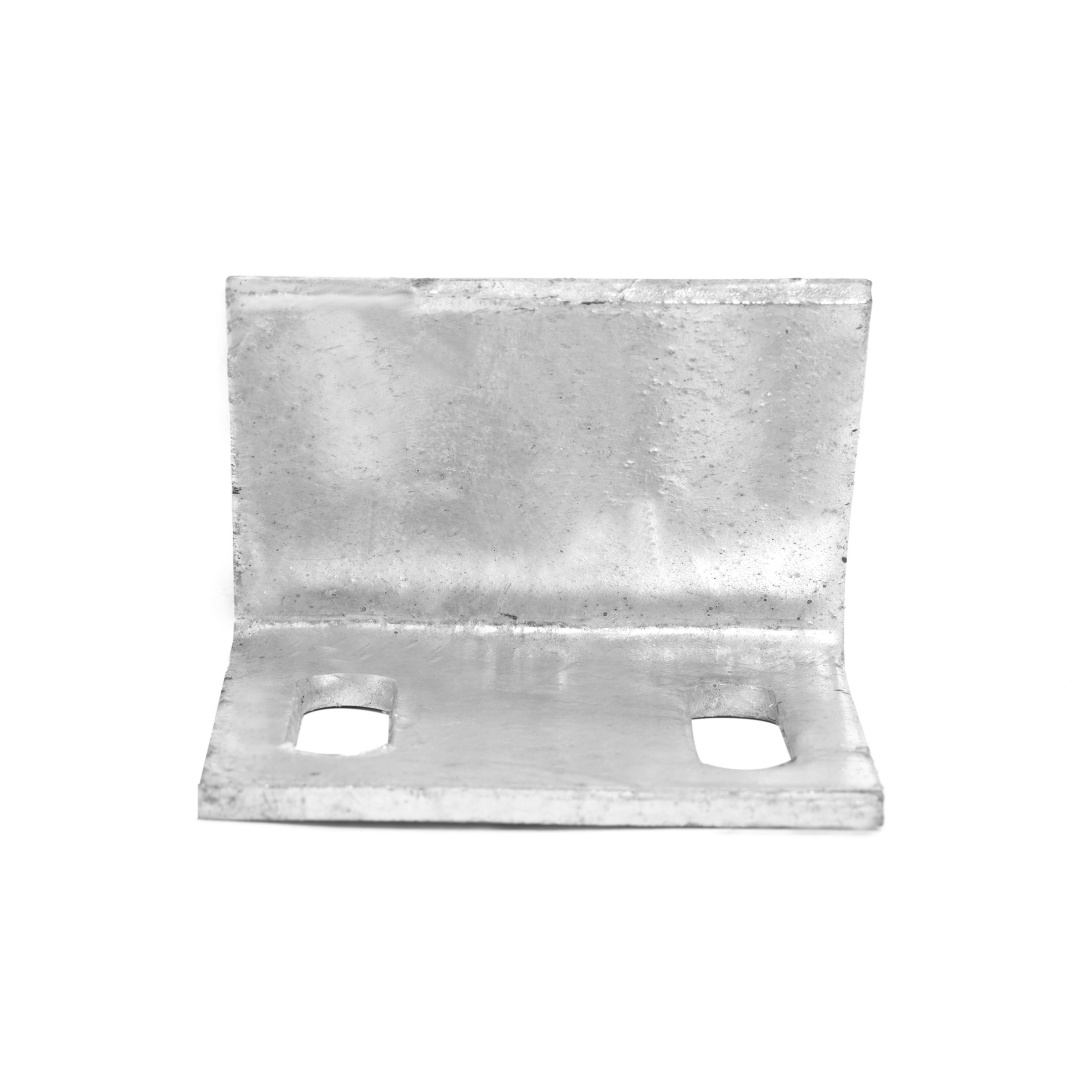

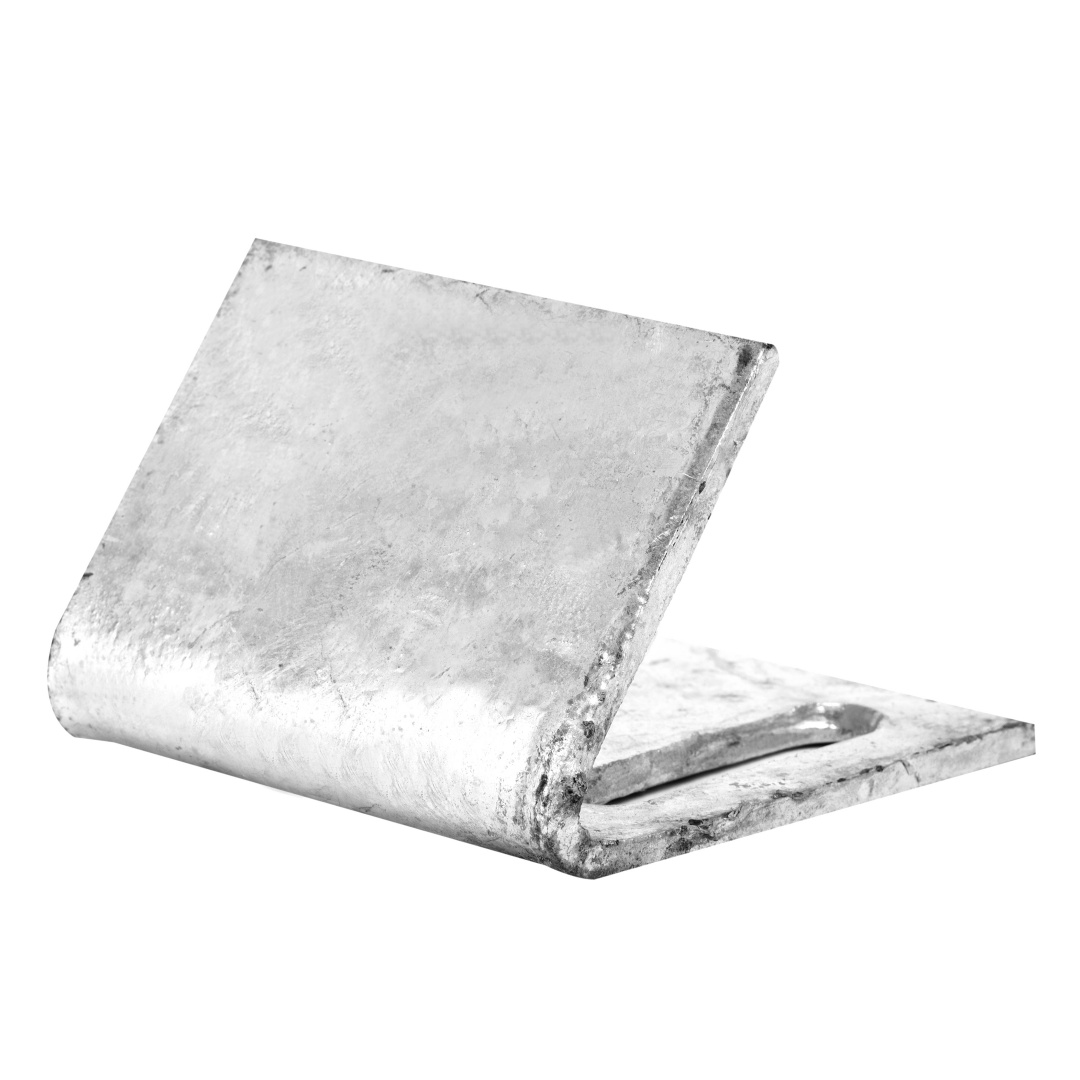

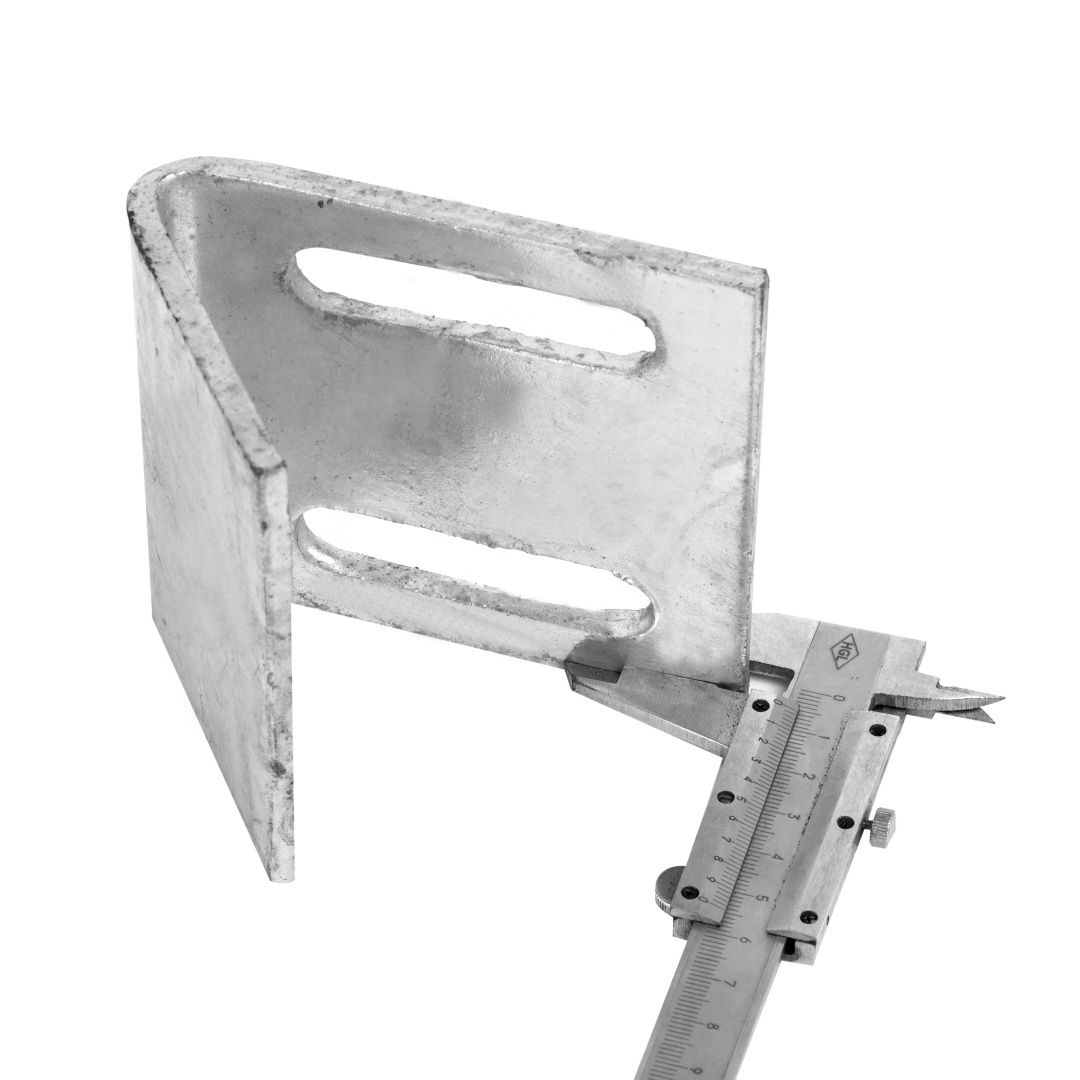

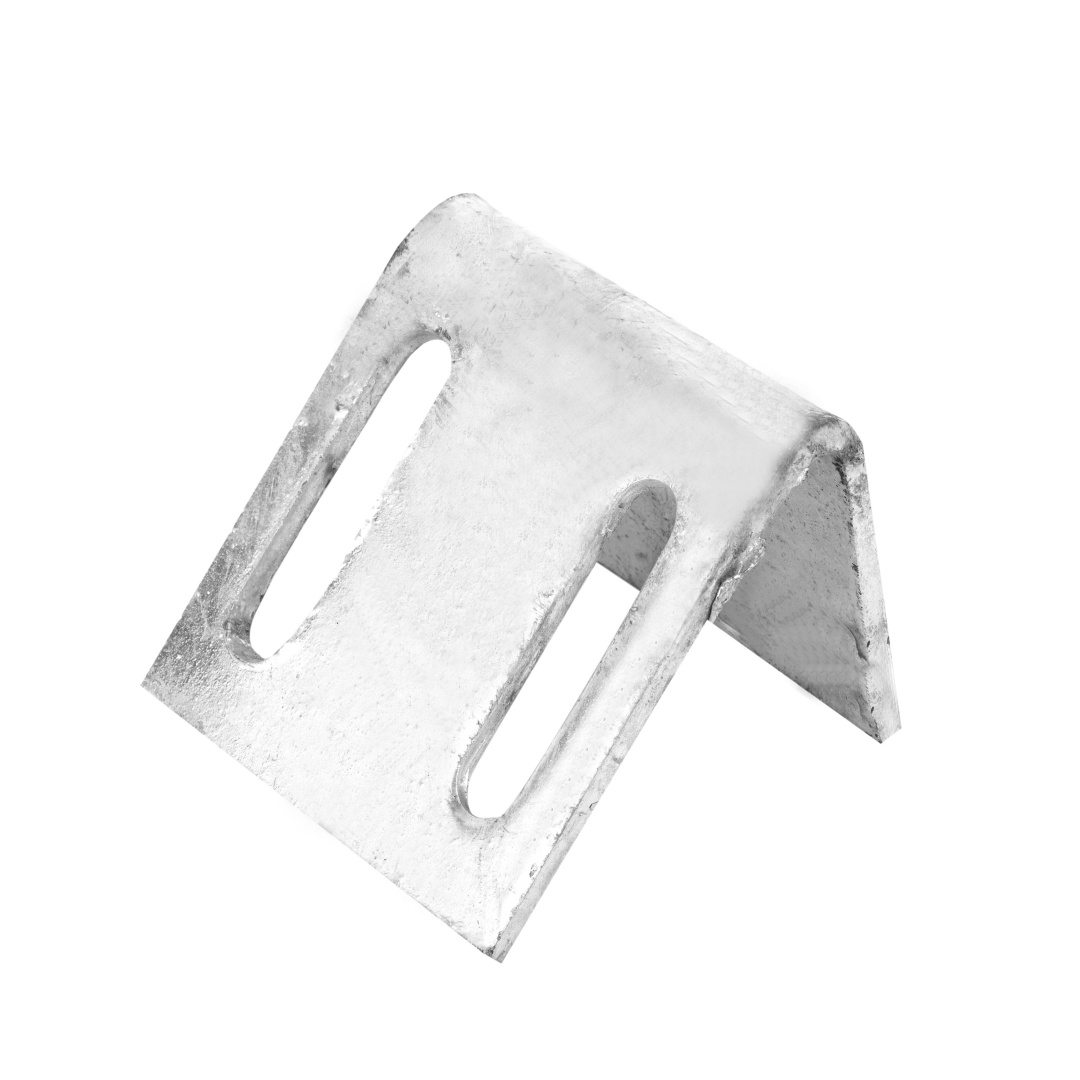

A 45° angle bracket is a metallic connector designed to join two structural members at a 135° interior angle — the outside corner forms a clean 45° incline. In curtain wall and steel construction, not every joint is a right angle. Sloping facades, angled canopy beams, diagonal bracing, and architectural feature frames all demand non-orthogonal connectors that standard 90° brackets simply cannot provide.
Fabao Machinery fabricates 45° angle brackets in three key material groups to match every project condition: carbon steel for welded structural connections, stainless steel for exposed or corrosive environments, and aluminum alloy for lightweight curtain wall framing systems.
Material Selection Guide
| Material | Grade | Best For | Surface Treatment | Weldable? |
|---|---|---|---|---|
| Carbon Steel | Q235B | Heavy-duty welded connections to steel embed plates, canopy beams, bracing | Hot-dip galvanized (≥50μm), electro-galvanized, powder coated | Yes |
| Stainless Steel | SS304 / SS316 | Exposed architectural hardware, coastal & marine environments, hygienic areas | Pickled & passivated, optional powder coat | Yes |
| Aluminum Alloy | 6063-T5 | Aluminum curtain wall mullion-to-transom connections, non-welded framing, solar panel supports | Anodized (silver, black, bronze), powder coated | No (bolt-on) |
Typical Applications
-
Sloped Curtain Walls – Connecting inclined mullions to horizontal transoms at 45° joints.
-
Canopy & Awning Steel Beams – Bracing angled roof beams to vertical support columns.
-
Architectural Sunshades & Trellises – Geometric steel or aluminum frameworks requiring non-90° connections.
-
Diagonal Bracing Systems – Compression and tension tie-in points at 45° in steel structures.
-
Stone Cladding Subframes – Angled mounting brackets for entrance portals and feature walls.
-
Solar Panel Mounting Structures – Tilt brackets at custom angles for photovoltaic arrays.
Detailed Dimension Table (Steel & Stainless Steel)
| Model | Leg Length (mm) | Thickness (mm) | Holes | Material | Surface |
|---|---|---|---|---|---|
| AB-45-60-Q | 60 × 60 | 4 / 5 / 6 | 4 | Q235B | HDG / Electro |
| AB-45-80-Q | 80 × 80 | 5 / 6 / 8 | 6 | Q235B | HDG / Powder |
| AB-45-100-Q | 100 × 100 | 6 / 8 / 10 | 8 | Q235B | Custom |
| AB-45-120-S | 120 × 120 | 5 / 6 / 8 | 8 | SS304 | Passivated |
| AB-45-150-S | 150 × 150 | 8 / 10 | 10 | SS316 | Passivated |
Aluminum Angle Bracket Common Sizes
| Model | Leg Length (mm) | Thickness (mm) | Holes | Alloy | Surface |
|---|---|---|---|---|---|
| AL-45-50 | 50 × 50 | 3 / 4 | 4 | 6063-T5 | Anodized silver |
| AL-45-80 | 80 × 80 | 4 / 5 | 6 | 6063-T5 | Anodized black/bronze |
| AL-45-120 | 120 × 120 | 5 / 6 | 8 | 6061-T6 | Powder coated |
All dimensions, hole sizes, and angles can be customized to your drawings.
Why Choose Fabao for 45° Angle Brackets?
-
Material Versatility – Steel, stainless steel, and aluminum under one roof. No need to split orders across suppliers.
-
True Custom Angles – Not just 45°. Send your structural drawing, and we’ll fabricate any angle combination.
-
In-House Surface Treatment – Two galvanizing plants plus anodizing partnerships ensure consistent quality and faster lead times.
-
Engineering Support – 50+ technical staff review your specs and suggest optimizations before production begins.
-
Reliable Supply – 40,000-ton annual capacity, 70+ machines, and proven export packaging for global delivery.
Ready to Order a Custom Angle?
Whether you need a single prototype or a container load of 45° brackets, Fabao Machinery has the capacity and expertise to deliver. Tell us your angle, material, and dimensions — we’ll respond with a competitive quote within 12 hours.
