Product Description
A Simple Part That Holds Complex Structures Together

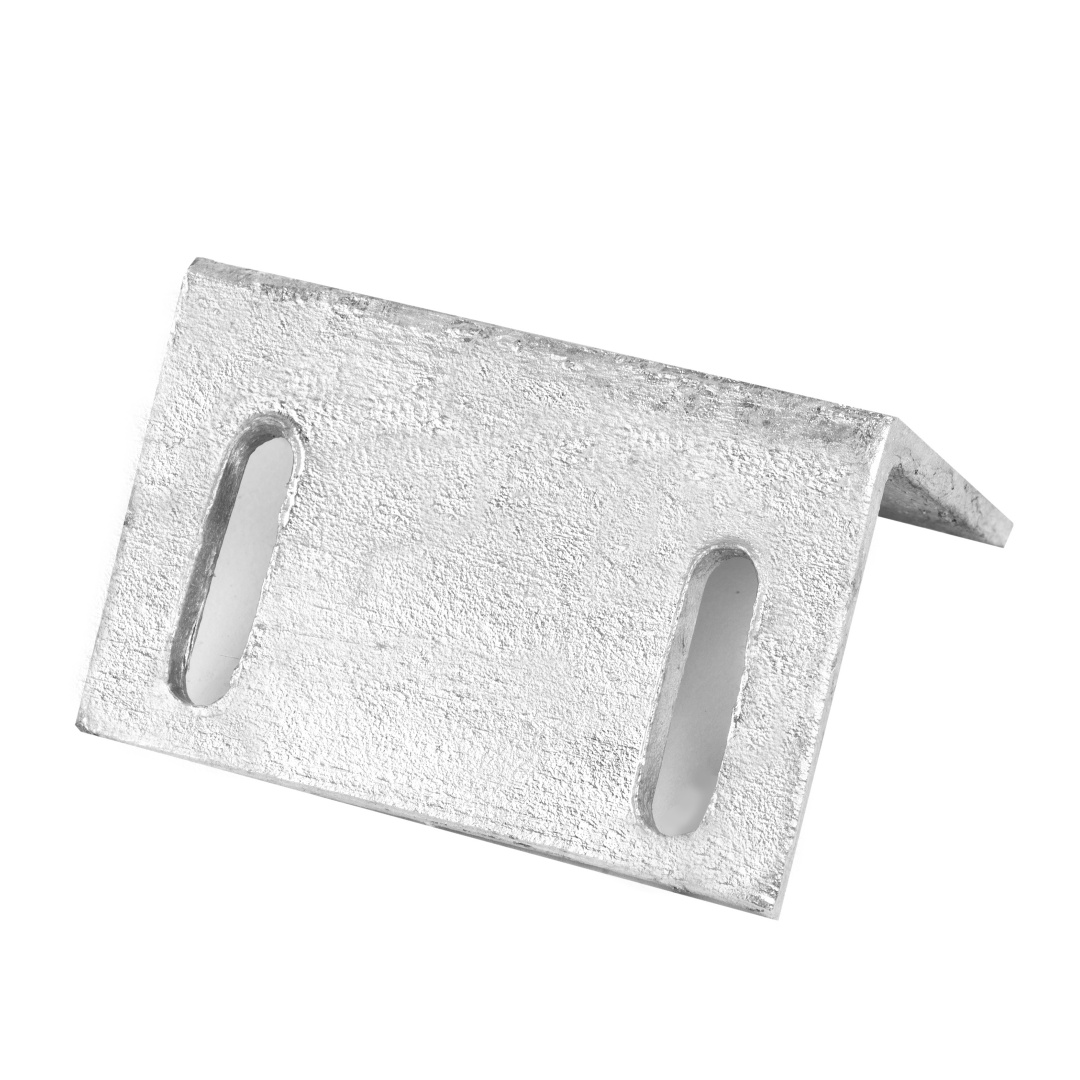

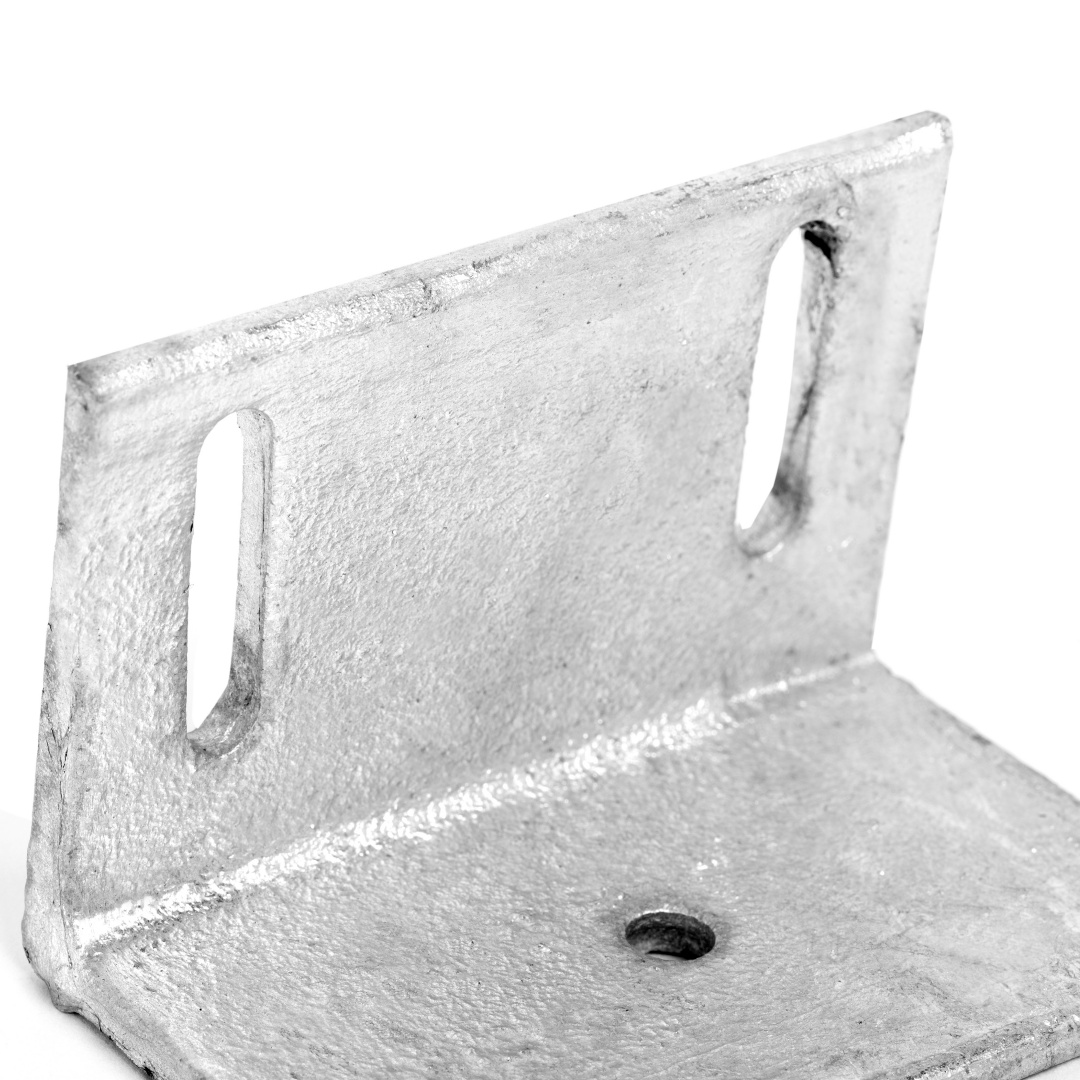

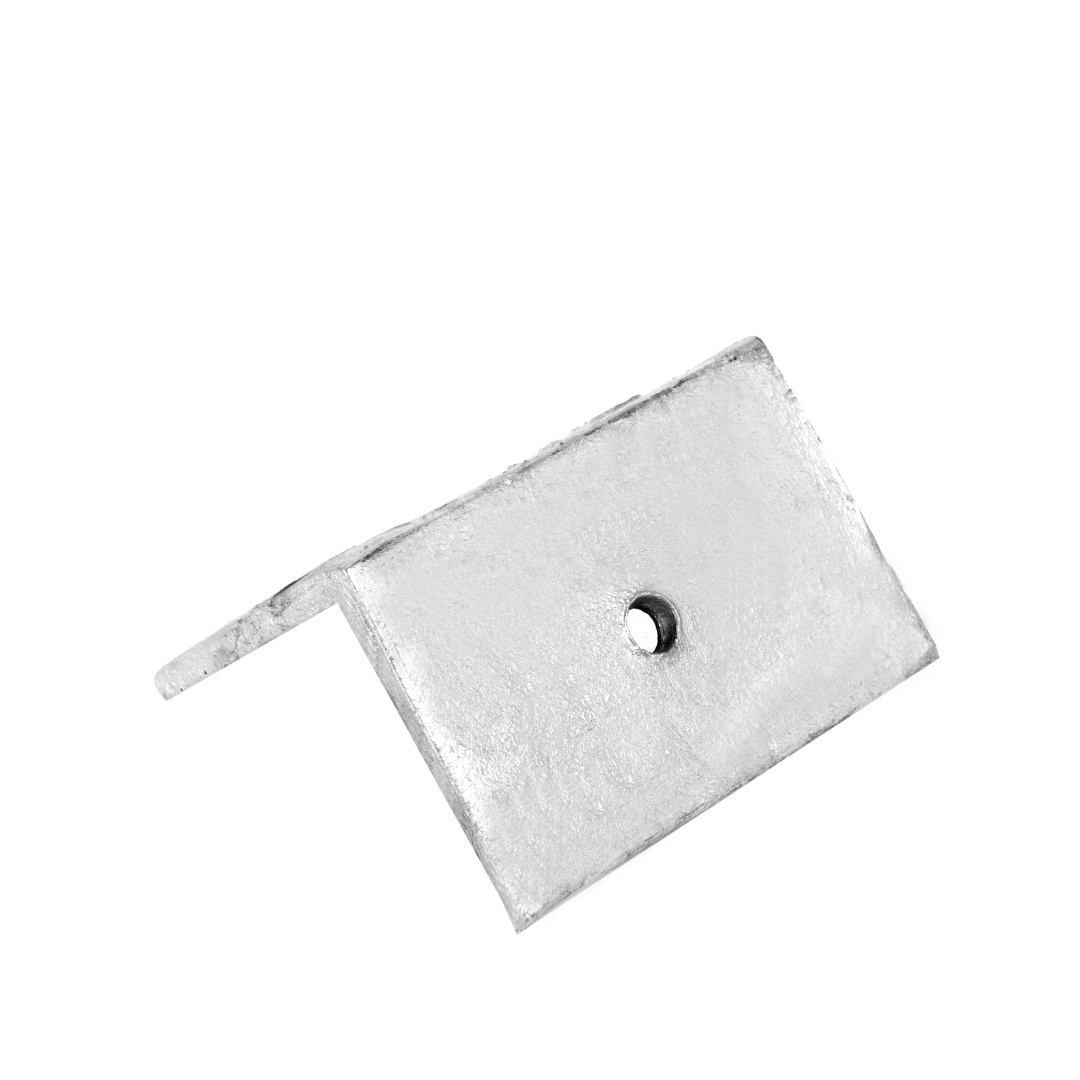

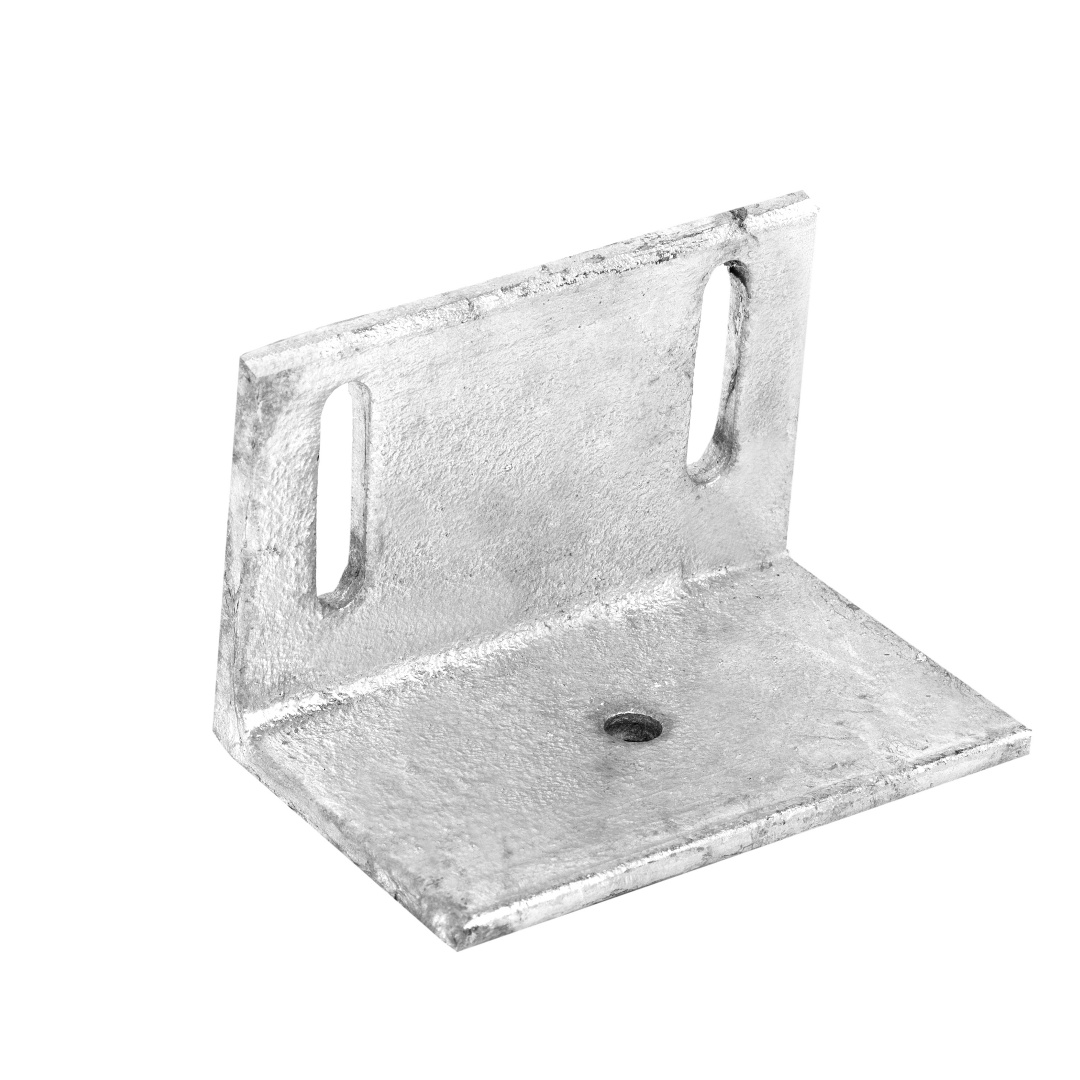

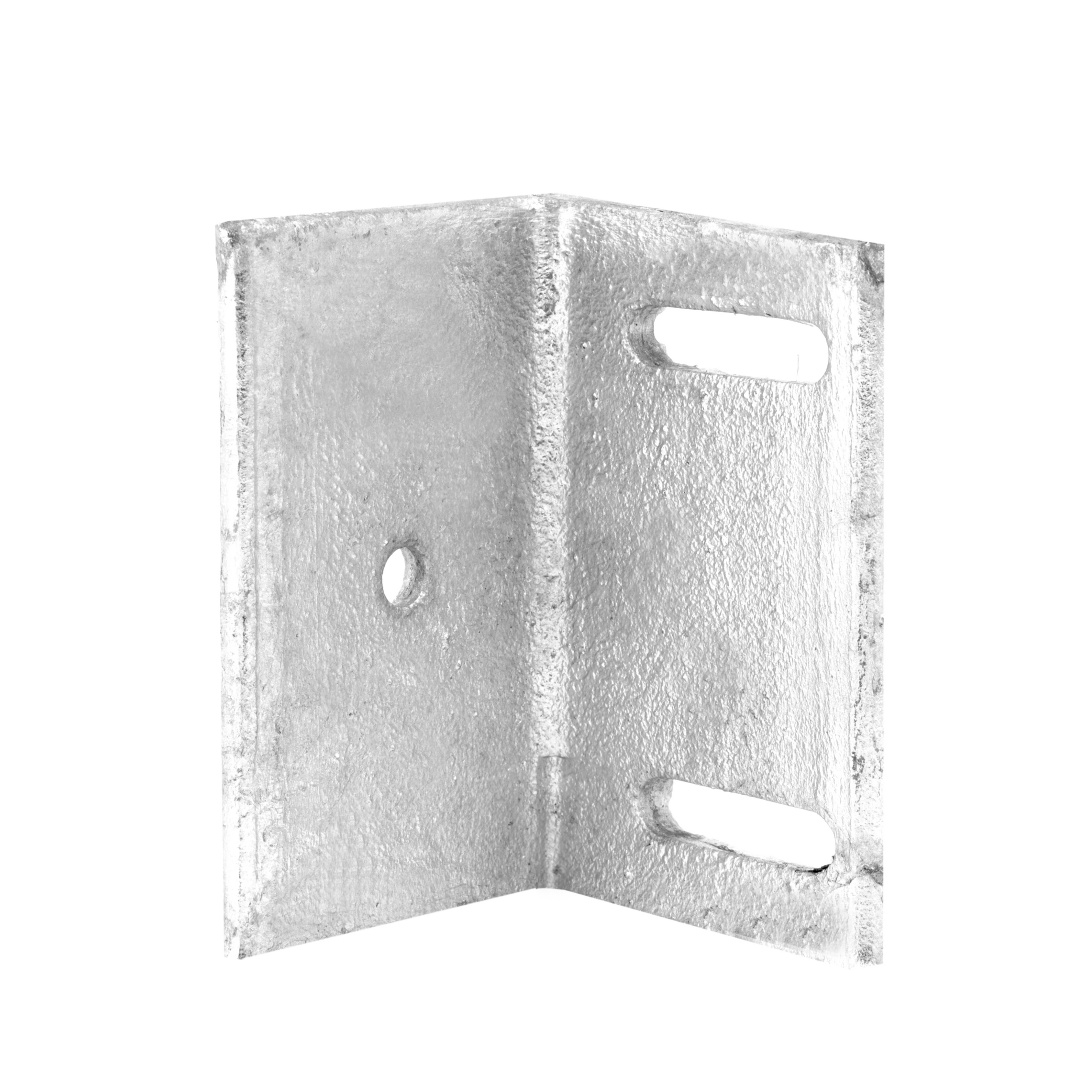

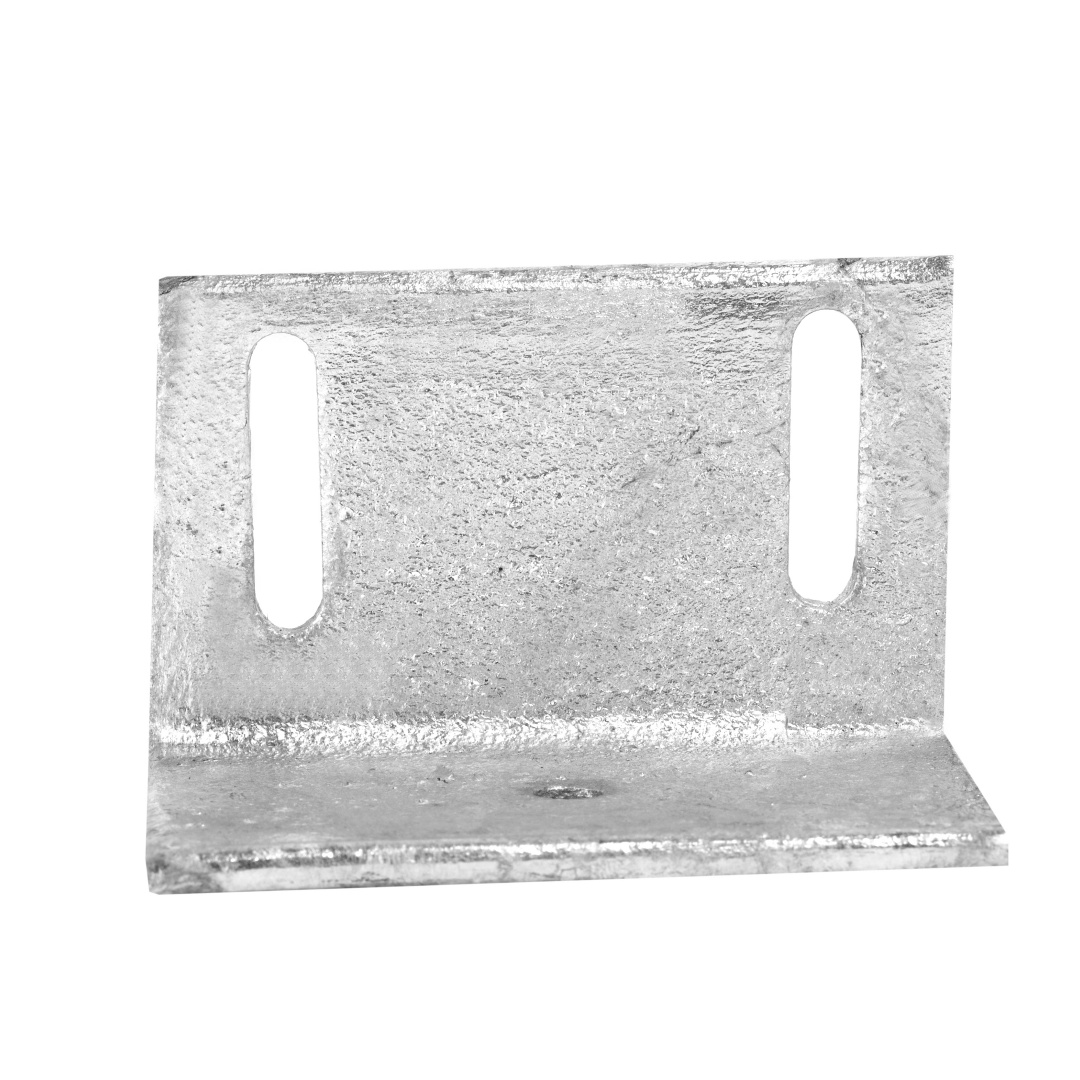

The 90° corner brace is one of the most basic yet indispensable hardware items on any construction site. It takes a flat piece of steel or aluminum, bends or cuts it into a right angle, and drills a few holes — and suddenly you have a reliable connection that locks two perpendicular members into alignment.
But simplicity doesn’t mean triviality. A poorly made corner brace — with misaligned holes, sharp unburred edges, or inconsistent coating — creates delays every time an installer stops to re-drill a hole or rejects a rusted piece. Fabao Machinery ships pre-drilled, ready-to-install 90° corner braces so your crew can keep moving.
How a 90° Bracket Works on Site
| Step | What Happens | What Fabao Delivers |
|---|---|---|
| ① Positioning | Bracket placed against two perpendicular members | Holes align first time — no re-drilling |
| ② Fastening | Bolts or screws driven through pre-drilled holes | Clean, burr-free holes with ±0.3mm tolerance |
| ③ Load Transfer | Bracket carries dead load, wind suction, or vibration | Full-penetration welds (steel) or precision extrusion (aluminum) |
| ④ Long-Term Protection | Exposed to humidity, rain, or coastal air | HDG 50μm+, or anodized 15μm+ for aluminum |
Application Gallery
Facade Bracket Mounting
The most common use: connecting a curtain wall bracket to an embed plate on the slab edge. Our 90° brackets come pre-slotted for vertical and horizontal adjustment, letting the installation team fine-tune facade alignment without field cutting.
Steel Frame Window & Door Openings
Lighter-gauge 90° brackets reinforce corners of window and door subframes within curtain wall bays. Stainless steel 304 is recommended here when the bracket remains partially visible behind glazing.
Machinery & Industrial Guardrails
Heavy-duty Q235B brackets with hot-dip galvanizing anchor guardrail posts and equipment frames to concrete foundations in factories, processing plants, and railway platforms.
Solar Panel Racking
Aluminum 90° brackets connect rail-to-post junctions in ground-mount and flat-roof solar arrays. Anodized finish matches the racking system — no galvanic corrosion.
Timber-to-Steel Hybrid Connections
In renovation projects, our brackets bridge steel beams to timber framing elements where wall or roof additions meet existing structures.
Packaging & Shipping
| Detail | Standard | Custom Orders |
|---|---|---|
| Carton Quantity | 100 / 200 / 500 pcs per carton | Per client specification |
| Palletizing | Export-grade plywood pallets, shrink-wrapped | Custom labeling available |
| Container Loading | 20ft and 40ft HC | Mixed SKU loading supported |
| Lead Time | 15–25 days from order confirmation | Confirmed per quotation |
| Protection | VCI paper or anti-rust oil for bare steel parts | Optional for galvanized finish |
Frequently Asked Questions
1. Can I get unequal leg lengths — for example 80×120mm?
Yes. Unequal-leg 90° brackets are produced regularly. Specify the long leg and short leg, and we’ll fabricate to your dimensions.
2. What if I need a hole that isn’t in your standard table?
Custom hole patterns — slotted, countersunk, staggered spacing, oversized — are standard practice here. Just mark them on your drawing.
3. Do aluminum brackets come with stainless steel bolts?
We can supply matching stainless steel fasteners as an optional add-on, or you can source locally per your project spec.
4. How are parts protected during ocean freight?
Each carton is lined with VCI anti-rust paper. Cartons are stacked on fumigated plywood pallets, strapped, and stretch-wrapped. For bare steel parts, anti-rust oil is applied at no extra charge.
5. What’s your replacement policy if parts arrive damaged?
We require photo documentation within 7 days of delivery. Verified manufacturing or packing defects are replaced or credited on the next shipment.
Why Fabao for 90° Corner Braces?
-

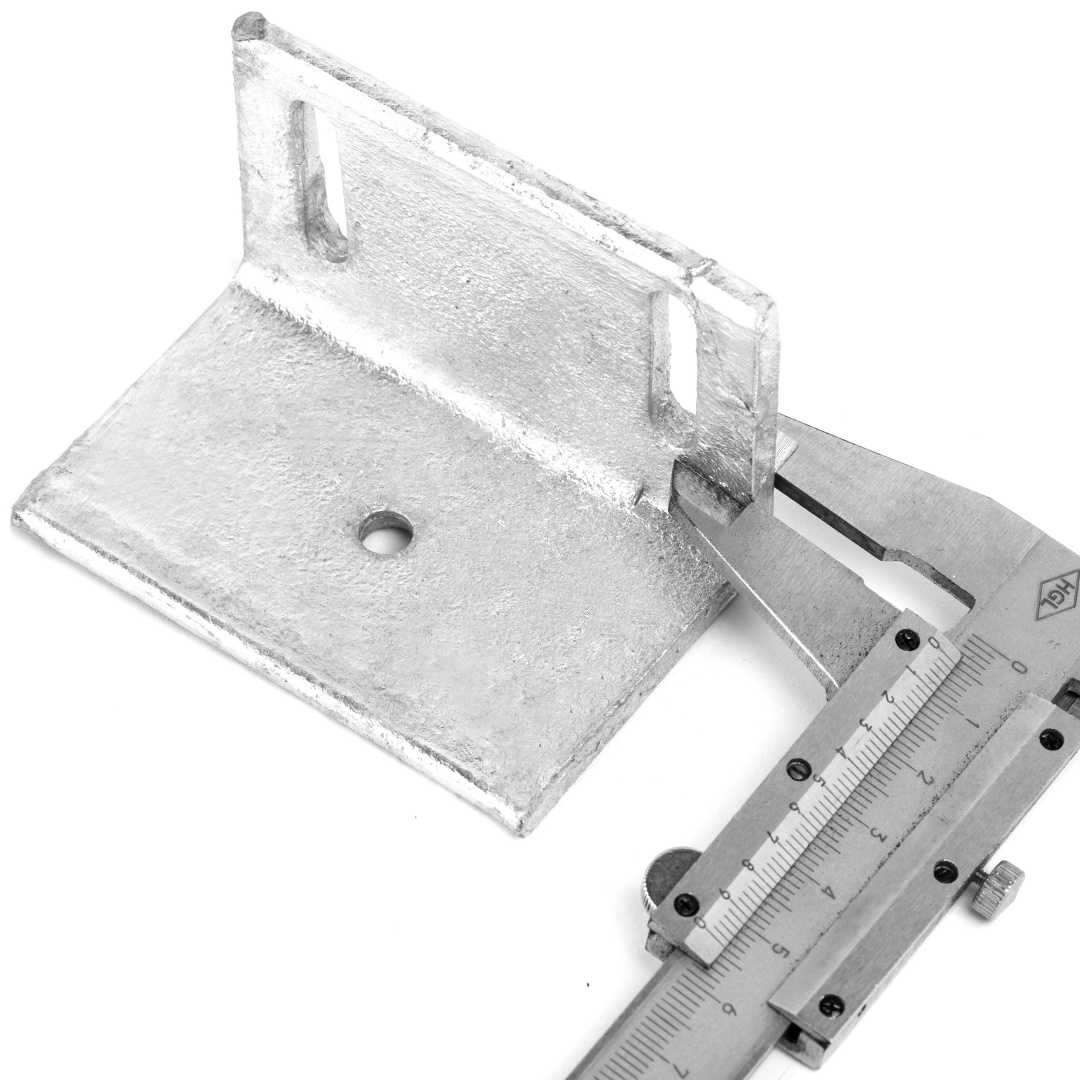

Pre-Drilled, Ready to Install – Laser-cut and CNC-punched for hole accuracy within ±0.3mm.
-
40,000-Ton Annual Capacity – Your order doesn’t wait in line behind bigger jobs.
-
Two In-House Galvanizing Plants – Consistent HDG coating thickness, no outsourced delays.
-
Export Packaging Expertise – Reinforced pallets, VCI protection, mixed container loading.
-
12-Hour Quote Response – Send drawings, get a firm price and lead time the same day.
