Custom Steel Connection Parts for Curtain Wall & Steelwork

Product Description

One Name, a Thousand Shapes

Connection parts are the most open-ended category in curtain wall and structural steel supply. They don’t have a single profile or a standard catalog picture. One project needs an L-shaped cleat with slotted holes on the short leg. Another calls for a flat splice plate with countersunk bolts. A third requires a welded gusset with two different angles — and all of them fall under “connection parts.”

This is where Fabao Machinery’s custom fabrication capability matters most. We don’t expect you to adapt your design to our existing tooling. You provide the drawing — we cut, punch, drill, bend, weld, and coat. The finished part matches your dimensions, not the nearest equivalent from a stock list.

Common Connection Part Profiles We Produce Daily

Shape	Typical Use	Processing
L-Angle Cleat	Beam-to-column connection, bracket support	Cut + drill + HDG
U-Channel Bracket	Adjustable embed-to-bracket fixing	Press brake + slot + HDG
Z-Bracket	Offset connections, stepped facade mounts	Bend + drill or weld assembly

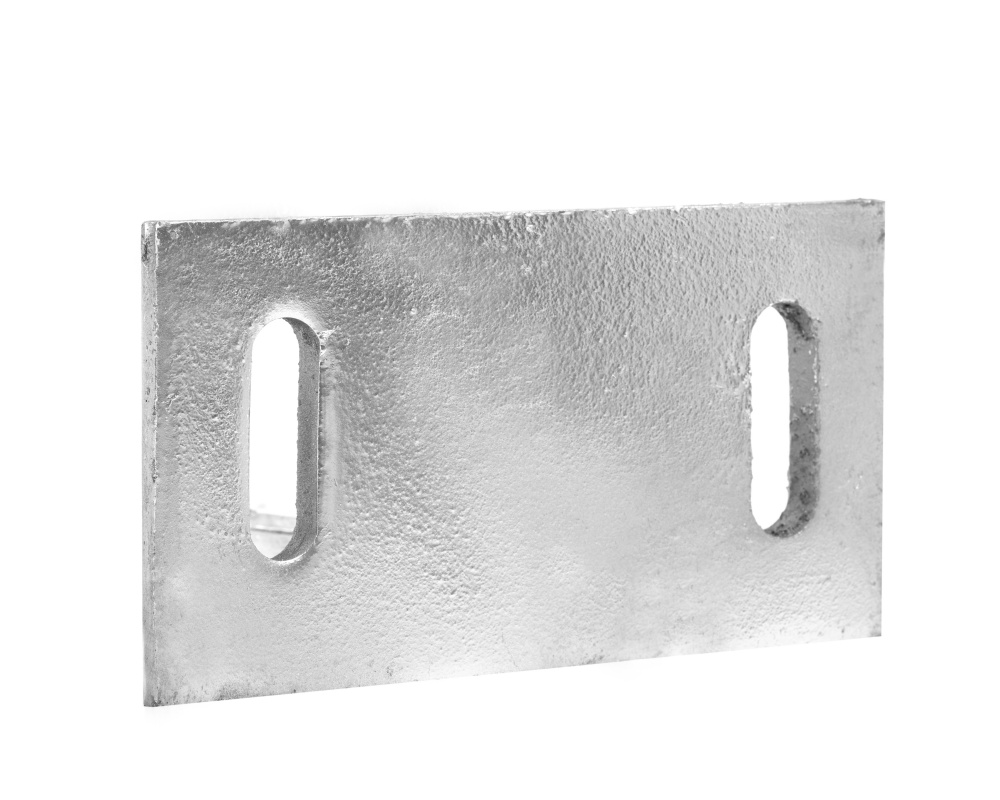

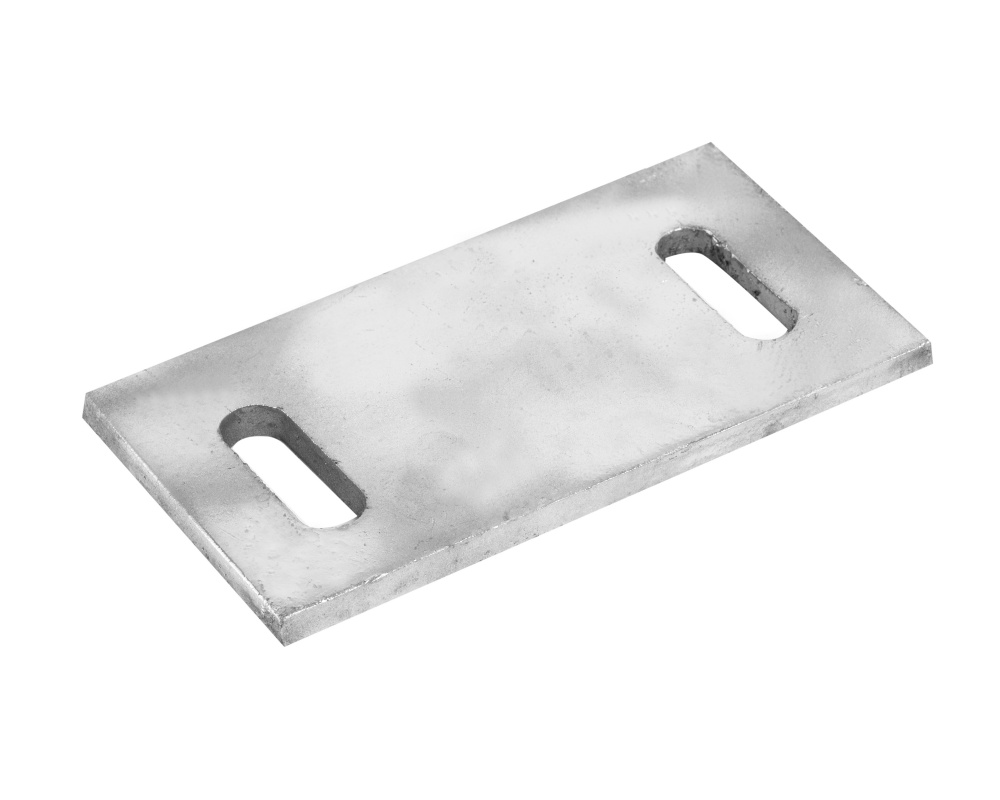

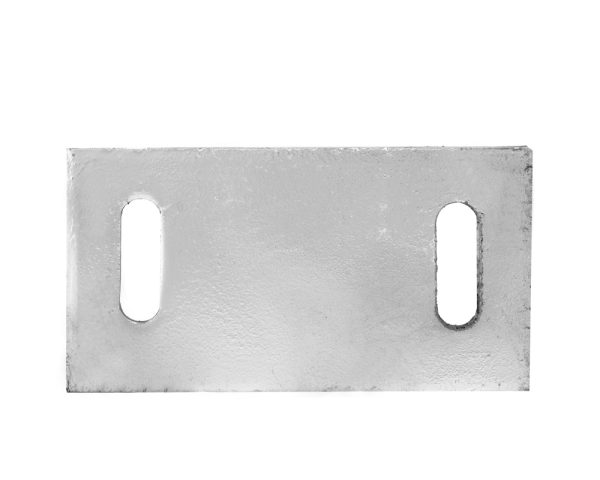

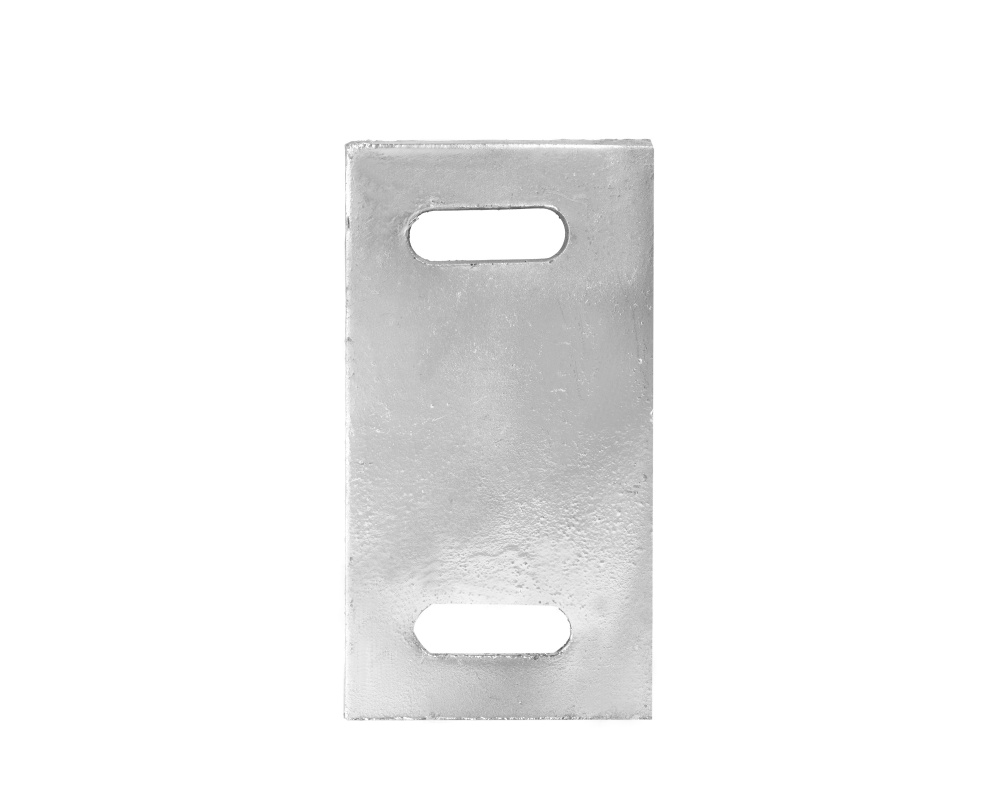

Flat Splice Plate	Butt joint reinforcement, moment splices	Laser cut + drill + coating
Gusset Plate	Bracing node, truss joint	CNC plasma + weld prep
Welded Assembly	Multi-component connection with stiffeners	Cut, weld, drill, and coat as one piece

No matter the shape, the principle is the same: transfer load safely from one structural element to another. That means hole alignment within ±0.5mm, edge distances meeting your structural engineer’s requirements, and welds tested where specified.

How a Custom Connection Part Project Works

   YOUR DRAWING (PDF / DWG / sketch)
          ↓
   ENGINEERING REVIEW (within 12 hours)
   — Feasibility check
   — Material & coating recommendation
   — Tolerance confirmation
          ↓
   QUOTATION (factory‑direct price, lead time)
          ↓
   SAMPLE APPROVAL (photo / video before shipment)
          ↓
   MASS PRODUCTION (laser / plasma / press brake / welding)
          ↓
   QUALITY CHECK (dimension, weld, coating)
          ↓
   PACKING & SHIPPING (VCI + pallet, FCL / LCL)

Material & Load Guide

Load Condition	Recommended Material	Surface	Example
Light static load, interior	Q235B 3–6mm	Electro-galv. or pre-galv.	Window subframe clips
Medium structural, outdoor	Q235B 6–12mm	HDG ≥50μm	Curtain wall bracket, canopy cleat
Heavy / dynamic / fatigue	Q355B 10–20mm	HDG 85μm + epoxy	Crane rail bracket, seismic brace
High corrosion, coastal	SS316 3–12mm	Passivated	Marine facade connection
Contact with aluminum	SS304 or aluminum parts	Anodized or passivated	Aluminum curtain wall bracket

Frequently Asked Questions

1. What drawing formats do you accept?
PDF, DWG, DXF, and clear hand sketches with dimensions. If the load requirements are known, include them — our engineers can suggest material grades and thicknesses.

2. Do you charge for a feasibility review?
No. The 12-hour engineering review and quotation are free of charge.

3. Can you supply a single sample before mass production?
Yes. We can produce a small sample batch for approval. Photos and dimension-check videos are provided before the balance of the order proceeds.

4. What if my part requires welding — how do you control quality?
All welded assemblies receive 100% visual inspection. For structural welds, full-penetration CO₂ welding is standard. Additional NDT (e.g., dye penetrant, ultrasonic) is available on request.

5. What’s the smallest order you’ll accept for custom parts?
There’s no strict minimum for custom connection parts. Even a small quantity of bespoke Z-brackets or gusset plates can be produced.

Why Fabao for Connection Parts?

True Custom, Not Semi-Standard – We fabricate to your drawing with no pressure to adapt to pre-existing tooling.
12-Hour Engineering Response – Send a drawing in the morning, receive a feasibility note and quote by end of day.
Multi-Process Under One Roof – Laser cutting, CNC punching, press braking, CO₂ welding, and galvanizing — all in-house.
Mixed Part Consolidation – Order L-cleats, U-brackets, embed plates, and bolts on one PO; we consolidate into a single shipment.
Global Project Experience – Parts supplied to curtain wall, railway, mining, and power projects in over 30 countries.
