I-Beam Connectors for Curtain Wall & Structural Steel

Product Description

The Missing Link Between I-Beam and Curtain Wall

An I-beam is a great structural section — but it’s not designed to receive curtain wall brackets directly. The flanges taper. The web is recessed. You can’t just bolt an angle bracket to it without a proper interface.

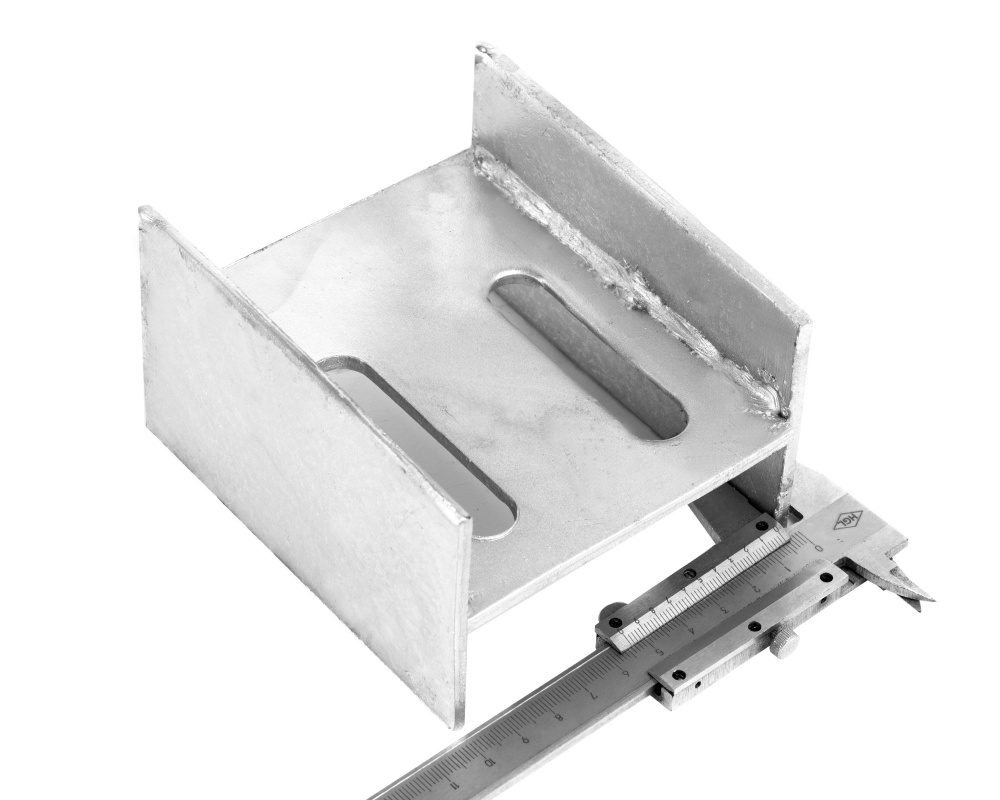

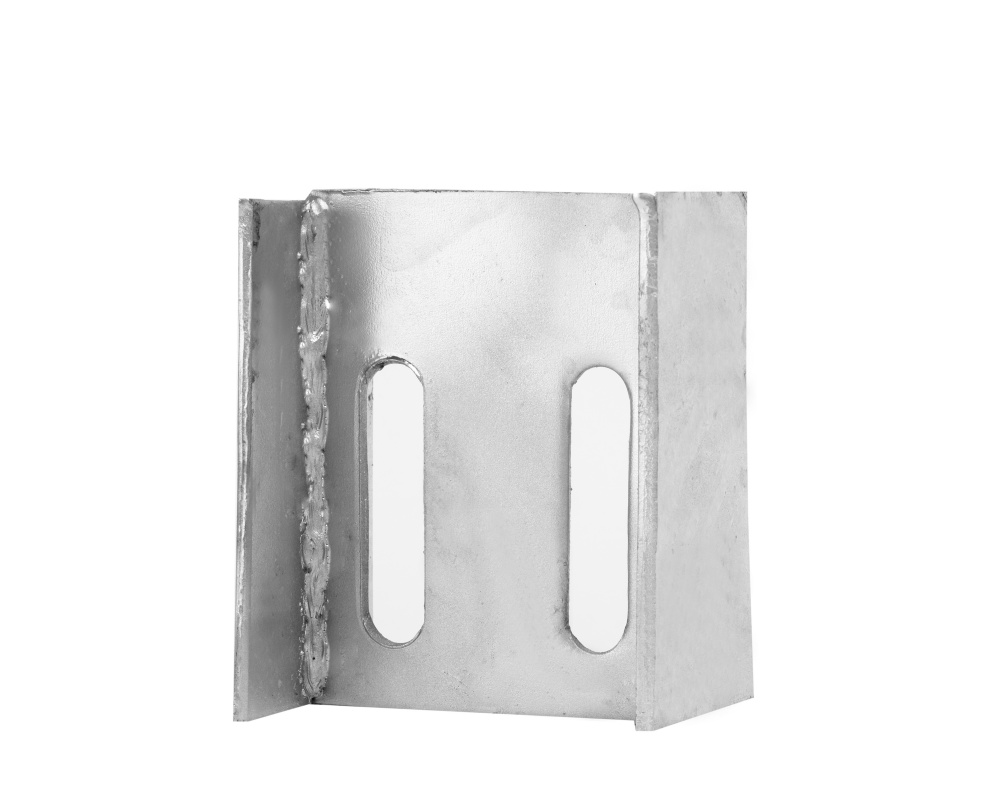

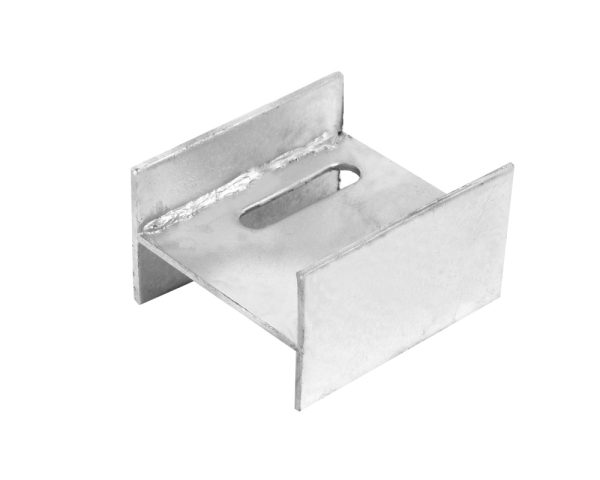

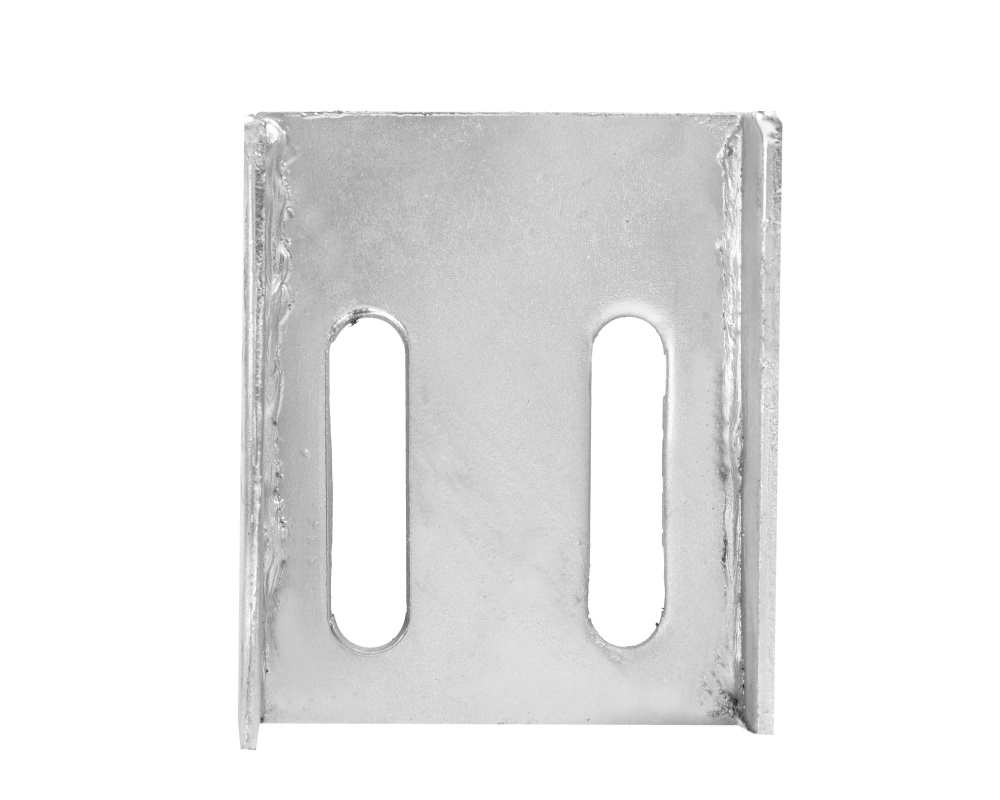

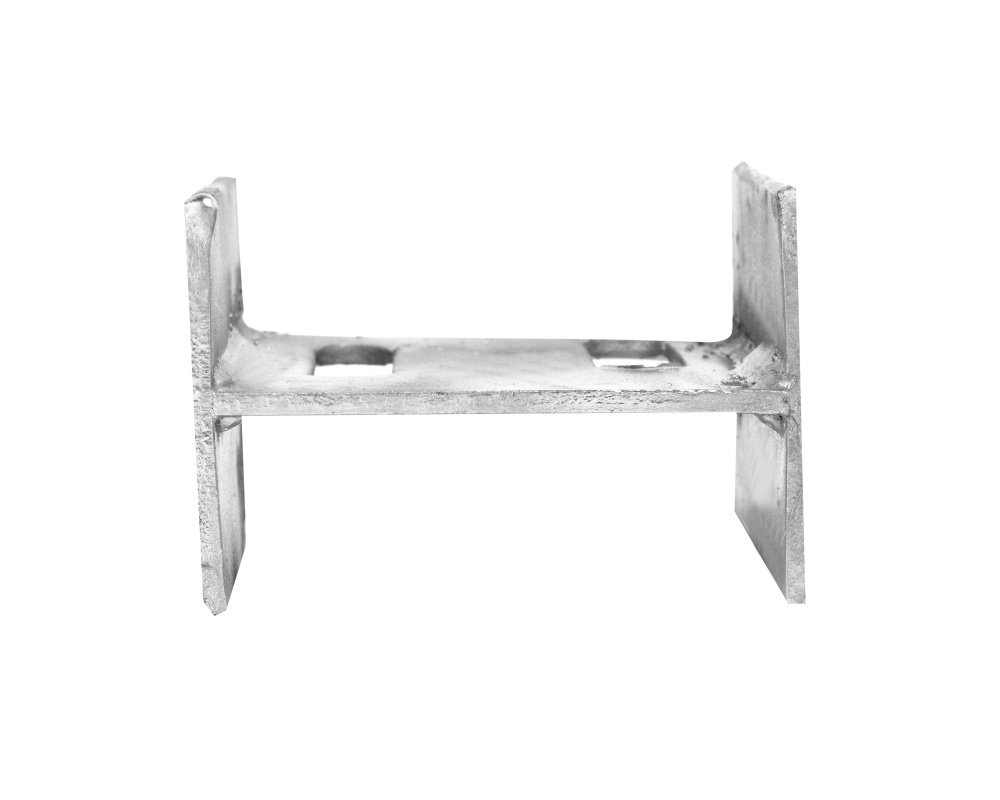

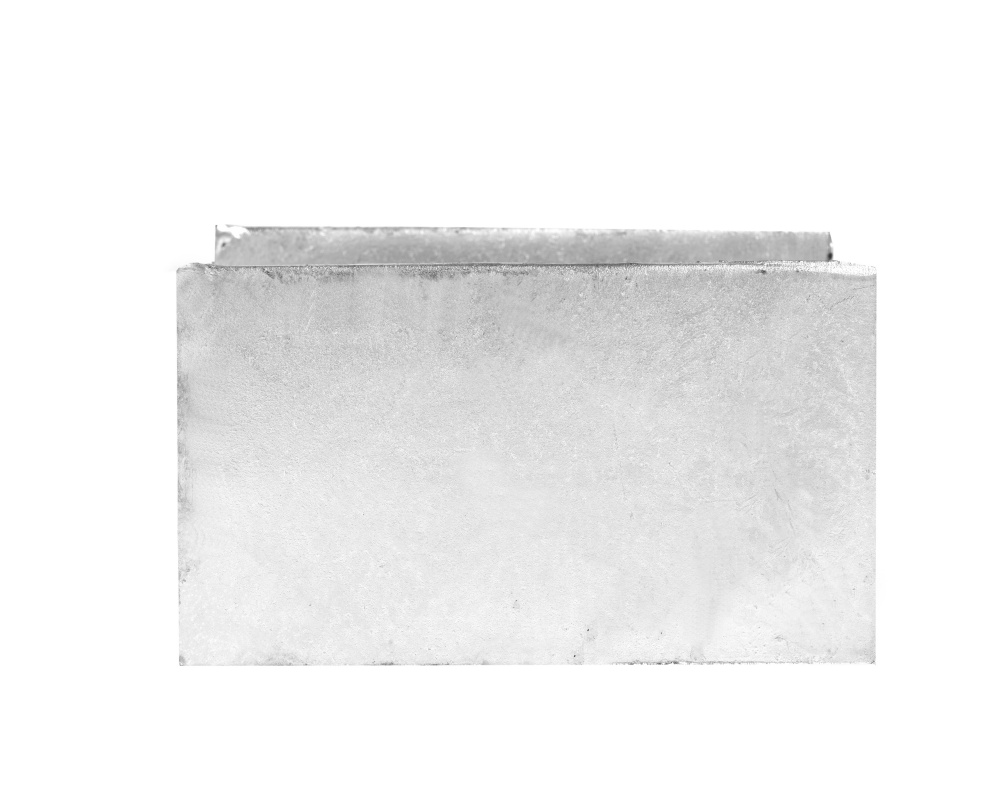

That’s where the I-beam connector comes in. Shaped like an “I” in plan view, it provides a flat, drilled mounting face on one side and a clamping or bolting interface to the I-beam flange or web on the other. Some variants straddle the flange like a saddle. Others bolt through the web. All of them do one thing: turn a curved, uneven I-beam profile into a clean, predictable fixing surface.

Fabao Machinery fabricates I-beam connectors custom-matched to your beam size. Every plate is laser-cut, drilled to your bolt pattern, and coated — ready to bridge the gap between structural steel and building envelope.

How an I-Beam Connector Interfaces with the Beam

        ┌───────────┐
        │   TOP     │ ← Flat mounting plate (bolts to curtain wall bracket)
        │  FLANGE   │
        │  ┌───┐    │
        │  │WEB│    │ ← Connector straddles or bolts to I-beam
        │  └───┘    │
        │  FLANGE   │
        │  BOTTOM   │ ← Clamping plate or bolted connection to beam
        └───────────┘
              │
         I-BEAM (cross-section)

Two common configurations:

• Flange-Mount Type: Clamps onto the top or bottom flange of the I-beam, providing a vertical or horizontal mounting plate for curtain wall brackets.

• Web-Mount Type: Bolts through pre-drilled holes in the beam web, providing a side-mounted connection plate for transom or pipe supports.

Compatible I-Beam Sizes

We match any I-beam standard: Chinese GB, European IPE/HEA/HEB, American W-shape, British UB/UC. Provide your beam designation and we’ll build the connector to fit.

Applications

• Curtain Wall Bracket to I-Beam Connection – The primary use. An I-beam edge beam at the building perimeter supports curtain wall brackets; our connector creates the bolting interface.

• Pipe & Conduit Support from I-Beams – Web-mounted connectors provide a flat face for U-bolts, pipe clamps, or cable tray brackets along the beam length.

• Canopy Beam Attachment – Connecting canopy steelwork to primary I-beams where direct welding is prohibited or impractical.

• Mezzanine & Platform Connections – Connecting secondary beams or framing to primary I-beams in industrial platforms and walkways.

• Equipment Suspension – Heavy-duty I-beam connectors for suspended conveyors, mono-rails, and HVAC units beneath ceiling beams.

Flange-Mount vs. Web-Mount Selection

Standard Dimension Reference

All dimensions, bolt patterns, and clamping widths custom-fabricated to your specified beam size and load requirements.

Frequently Asked Questions

1. How do I know which I-beam connector type I need?

If you have access to the top or bottom flange and need vertical load support, choose a flange-mount type. If you can only access the side of the beam, or if the load is primarily lateral, choose a web-mount type. Send your beam designation and load case — we’ll recommend the best configuration.

2. Do your flange connectors damage the beam’s paint or galvanizing?

Clamping connectors are designed with smooth contact surfaces. If the beam has a sensitive coating, we can add rubber or nylon isolation pads between the connector and beam flange. Specify if needed.

3. Can you provide connectors for tapered or non-standard I-beams?

Yes. For tapered beams or non-standard profiles, send the cross-section drawing with exact flange width, thickness, and web depth. We’ll fabricate to match.

4. What if my I-beam has existing bolt holes — can you match them?

We can fabricate connectors with hole patterns that align precisely to existing holes. Send the hole layout drawing and we’ll pattern our plate accordingly.

5. How do you ensure the connector plates don’t slip under load?

For flange clamps, through-bolts with lock washers or friction-grip bolts provide clamping force. For higher loads, we specify bolt torque values and can add serrated contact faces. Load testing reports available on request.

Why Fabao for I-Beam Connectors?

• Beam-Specific Fabrication – Every connector is matched to your actual beam size, not a generic “one-size-fits-most.”

• Thick-Plate Capability – Laser and plasma cutting of 6–16mm plates with clean bolt holes and accurate slot patterns.

• In-House Galvanizing – Flange clamps and web plates hot-dip galvanized after fabrication for full corrosion protection.

• Integration with Curtain Wall Brackets – Order your I-beam connectors, curtain wall brackets, and embed plates from one source — holes aligned, tolerances matched.

• Export-Ready Palletizing – Heavy connectors steel-strapped on reinforced pallets; flange protectors applied to prevent transit damage.

Request a Quote

Tell us your I-beam designation (e.g., IPE 220, W8x10), required load, and mounting preference (flange or web). We’ll return a factory-direct quote within 12 hours. Include a structural drawing for the most accurate quotation.
